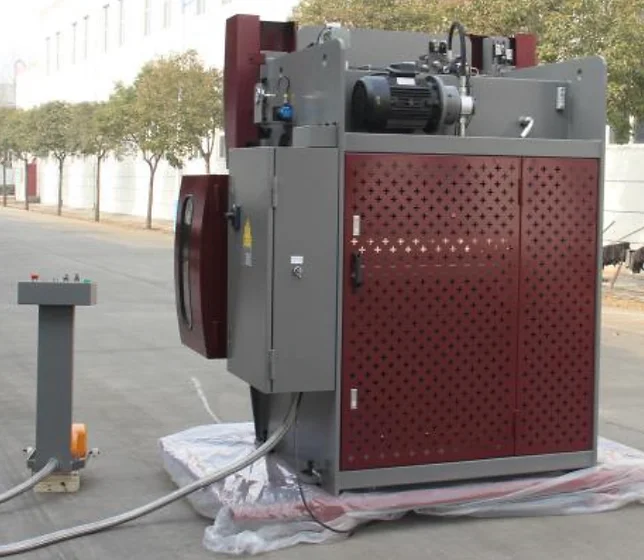

NEW 33 TON X 5' GMC MODEL HPB-3305CNC HYDRAULIC PRESS BRAKE

Manufacturer

Not provided

Model

HPB-3305CNC

Year

Not provided

Stock #

19106

Condition

New

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

NEW 33 TON X 5' GMC MODEL HPB-3305CNC HYDRAULIC PRESS BRAKE

  • ISO 9001 certified
  • Meet OSHA and CE safety standard

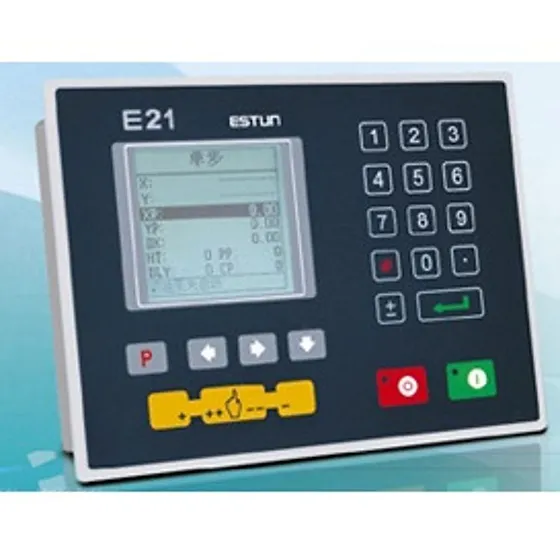

  • Easy-to-use programmable Estun E21 control
  • Easy programming, stores 40 programs
  • Estun E21 control keep a pice count for large production run
  • Japan Yaskawa drive
  • Precision ball screws for 24” back gauge
  • Germany Rexroth  hydraulic system
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet

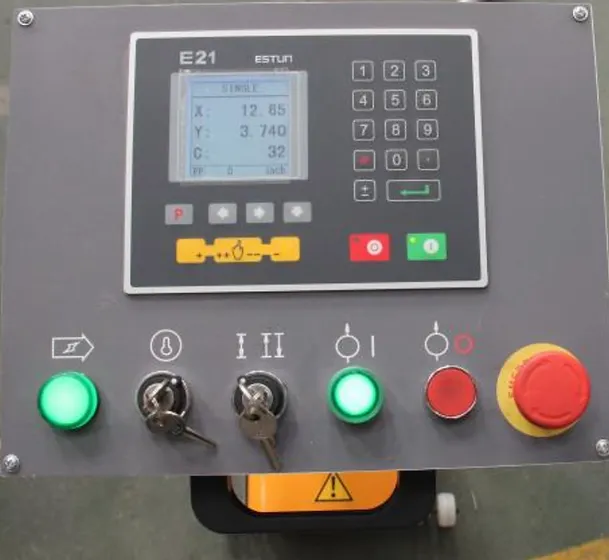

  • Safety type foot pedal with E21 screen, control panel and E-stop switch
  • Safety 24V low voltage & overload protection
  • One year industrial warranty for parts

STANDARD EQUIPMENT
  •  Estun E21, 2 Axis Controller
  • ( 2 )  24” front support arms

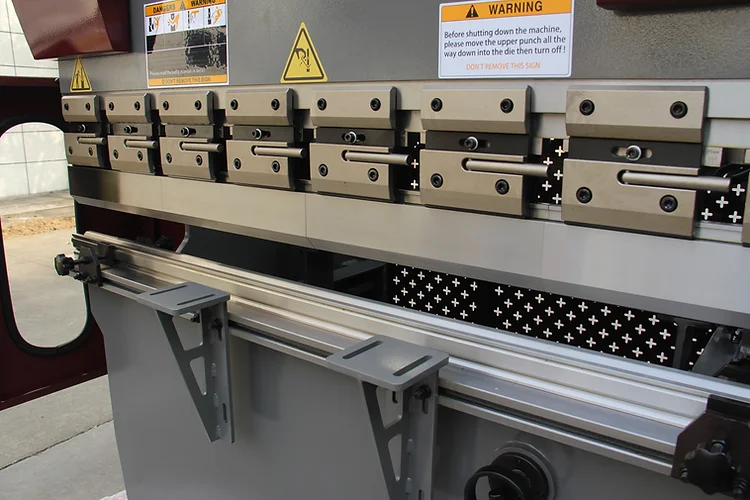

  • Quick release segmented ( American Style Tooling ) punch holder
  • Full Length Gooseneck Punch HRC 50  Full Length Vee Die with 6 assorted sizes  HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
  • Lntech Light Curtain System
  • Side and Back Safety Fence
  • Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard

  1. On-site training, one day…………………………….. $4995.00


Maximum Pressure 33 Tons
Bending Lenght Capacity 63" (5'3")
Distance Between Uprights (housing) 51"

Ram Stroke Travel

Cylinder Travel Adjustment (max)

4"

2"

Table Width 6"
Distance Between Table and Ram 13-1/4"
Throat Depth 8"
Back Gauge Distance 21"
Back Gauge Repeatability .008"
Y-Axis Repeatability .008"

Approach speed, inch / second

Working speed, inch / second

Return speed, inch / second

3.5”

0.39”

2.75”

Main motor:



Motor for back gauge:



Motor for bending angle

setting:

7-1/2 HP, 3 Phase 30 AMP

Prewired: 220VAC (+/- 10%)



1 HP, 3 Phase

220VAC (+/- 10%)



1/2HP, 3 Phase

220VAC, (+/- 10%)

Hydraulic oil tank capacity:



Recommended Oil:

20 Gal.



Hydraulic Oil Shell #68HD

Machine weight:

Machine size, L x W x H:

Shipping dimensions:

5,350 LBS

91"x56"x87”

91"x56"x87"




Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only

Note: the following models do not work with rotary phase converters:

All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)

HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC

These models listed above cannot run on any phase converters, Warranty will be voided.

GMC will pre-wire the Phase converter to our machine and it is ready to use.
