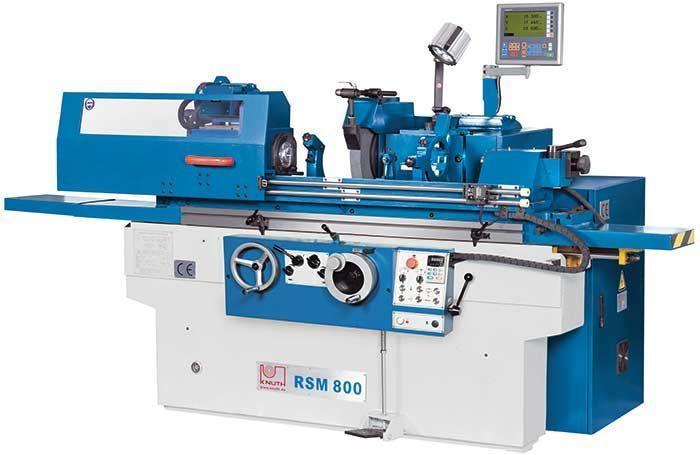

KNUTH RSM 500 A - RSM 800 CYLINDRICAL GRINDING MACHINE
Year
Not provided
Stock #
16236
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| RSM 500 A | RSM 800 | |
|---|---|---|
| Working Area | ||
| Center height | 5 in | |
| Workpiece length (max.) | 26 in | 37 in |
| Grinding length | 20 in | 31 in |
| Grinding diameter | 0.3 - 7.9 in | |
| Inside grinding diameter without rest | 0.4 - 3.9 in | 0.5 - 3.9 in |
| Work piece weight between centers (max.) | 110 lbs | |
| Inside grinding depth | 4.9 in | |
| Table swivel range (max.) | -3¡ / +9¡ R / L | -3¡ / +8¡ R / L |
| Wheel speeds | 1,482 in/s | |
| Feed | ||
| Table feed, infinitely variable | 0.33 - 13.08 fpm | |
| Feed per scale division X-axis | 0.000197 in | |
| Headstock | ||
| Work spindle speeds | 25 - 220 rpm | |
| Working headstock swivel range | 0-45¡ | |
| Spindle taper | MT 4 | |
| Grinding headstock | ||
| Inside grinding spindle speed | 16,000 rpm | |
| Grinding headstock swivel range (r+l) | ± 30¡ | |
| Tailstock | ||
| Tailstock taper | MT 4 | |
| Drive Capacity | ||
| Total power consumption | 5.63 | |
| Measures and Weights | ||
| Grinding wheels dimensions | 16x2x8 in | |
| Grindstone dimensions, inside grinding (max.) | 2x1x0.5 in | |
| Grindstone dimensions, inside grinding (min.) | 0.7x0.8x0.2 in | |
| Overall dimensions (length x width x height) | 99x63x60 in | 119x63x60 in |
| Weight | 5,500 lbs | 6,600 lbs |
- Proven and extremely rigid machine frame made of premium cast-iron - this machine's high intrinsic weight, diligent design and production create optimum conditions for excellent grinding and sanding results
- Infinitely variable hydraulic linear feed
- High-precision guideways of linear and transverse movement consisting of combined V-guides and box ways
- Hydraulic adjustment of the grinding headstock simplifies set-up, workpiece exchanges and reduces downtimes
- Grinding spindle with segmented high-precision bearing, adjustable and low maintenance
- Work spindle speeds are infinitely variable and can be easily adjusted and optimized during the machining process
- Machine table swivels for taper grinding
- Hydraulic tailstock with foot switch
- 2-axis position indicator
- internal grinding equipment
- 3-jaw chuck, ¯ 7.87"
- chuck flange
- balancing station
- balancing mandrel
- truing feature
- center point
- grinding wheel flange
- coolant system
- open rest
- closed rest
- drivers
- work lamp
- operating tools
- operator instructions
