Equipped With

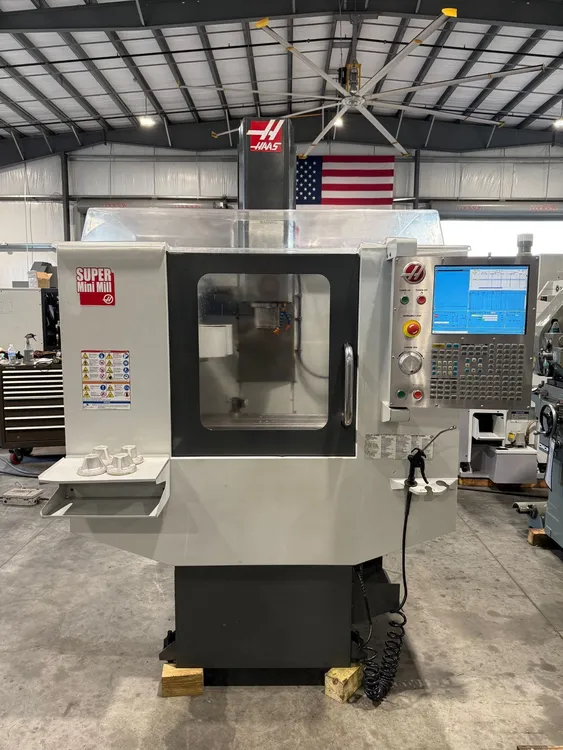

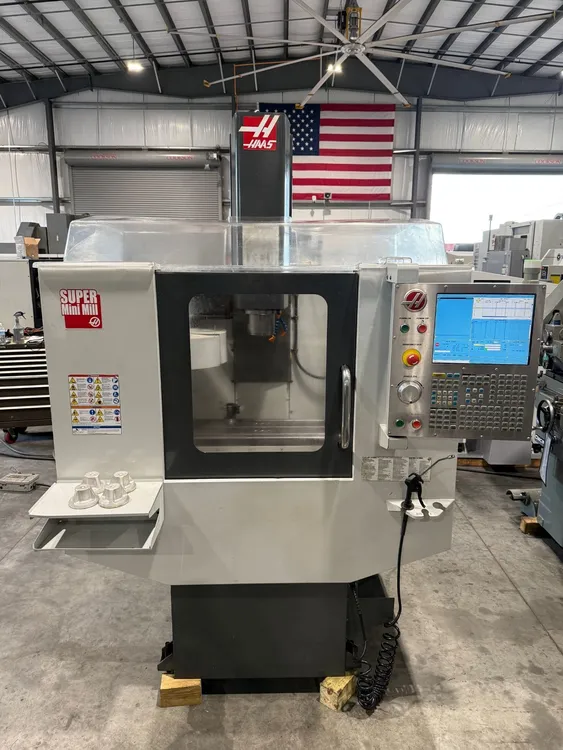

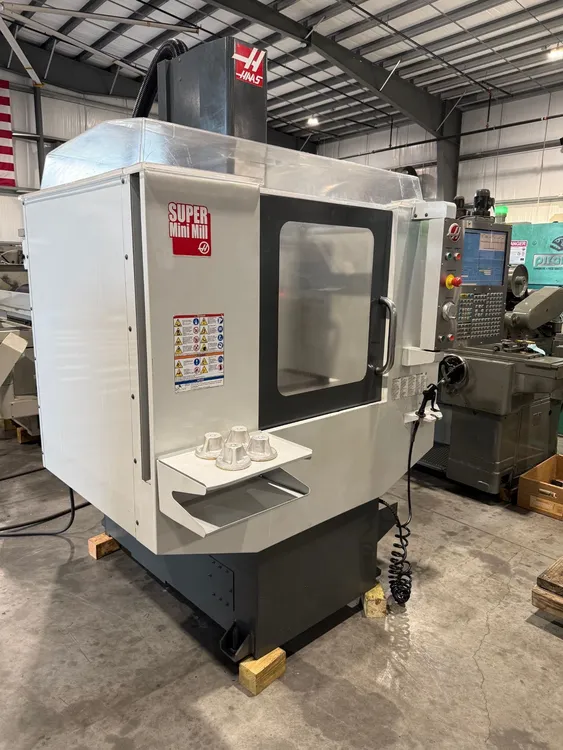

HAAS SUPER MINI MILL CNC Vertical Machining Center

New 2012

SPECIFICATIONS:

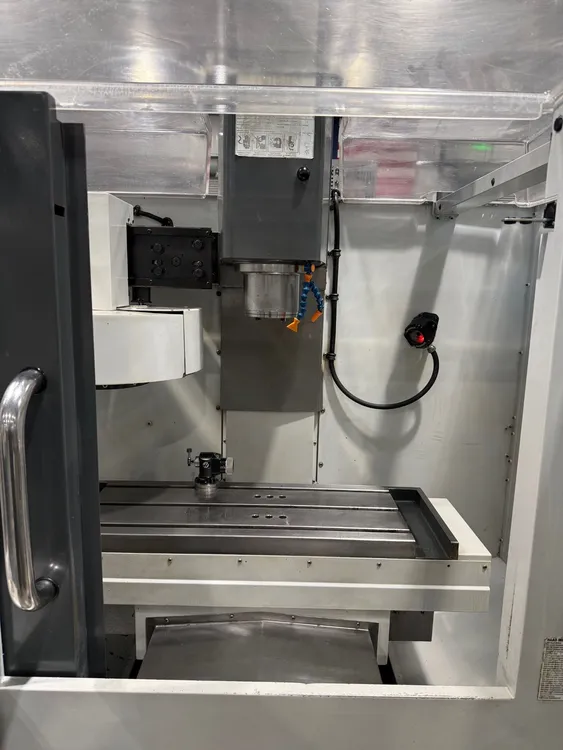

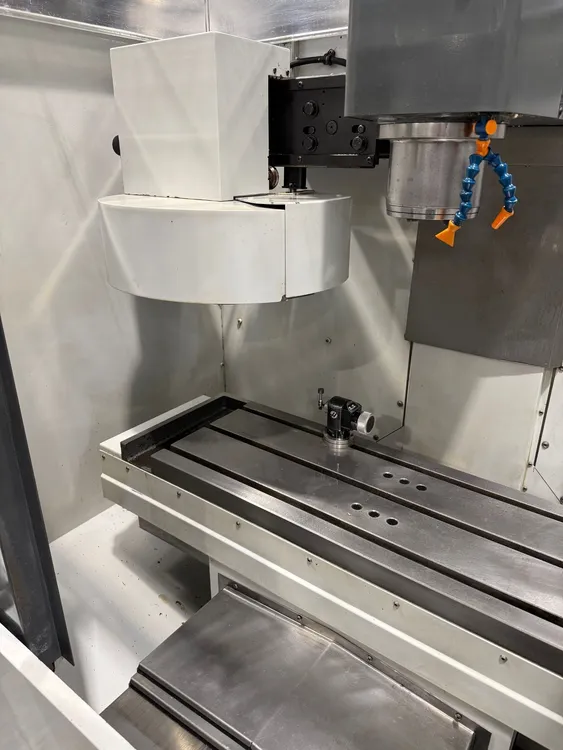

Table size- 36” x 12”
Number of T slots- (3)
Maximum table weight- 500 Lbs.
Maximum spindle speed- 10,000 R.P.M.
Spindle taper- CAT-40
X axis travel- 16”
Y axis travel- 12”
Z axis travel- 10”
Minimum / Maximum spindle nose to table- 4” / 14”
X,Y,Z Rapids- 1200 I.P.M.
Tool changer capacity- 10
Tool to tool time- 2.8 seconds

EQUIPPED WITH:

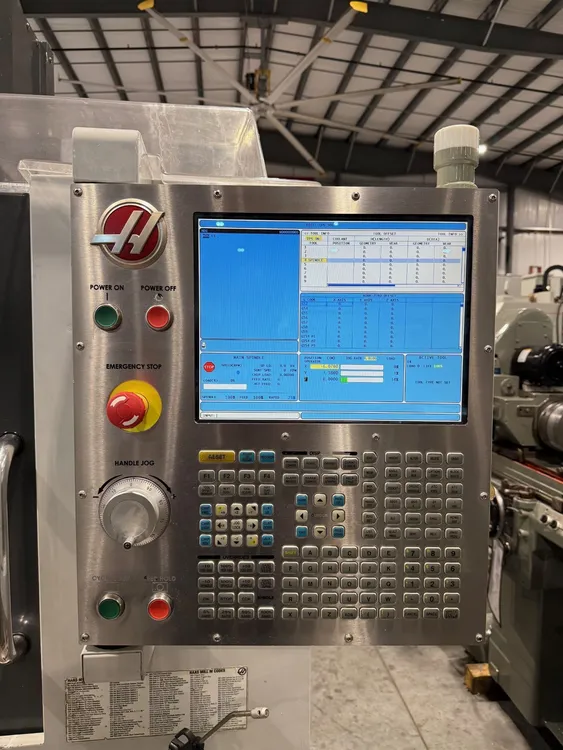

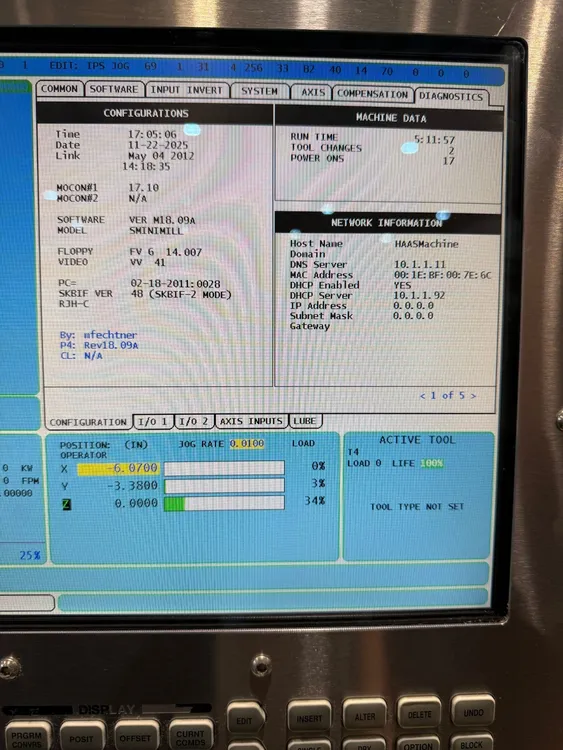

HAAS CNC Control , USB Port
Controls options- Rigid tapping, Enable Rotation & Scaling, DNC, M19 spindle orient, Quick code, Pre-Orient Tap, wired for 4th axis, Advanced tool management, Intuitive progressive system

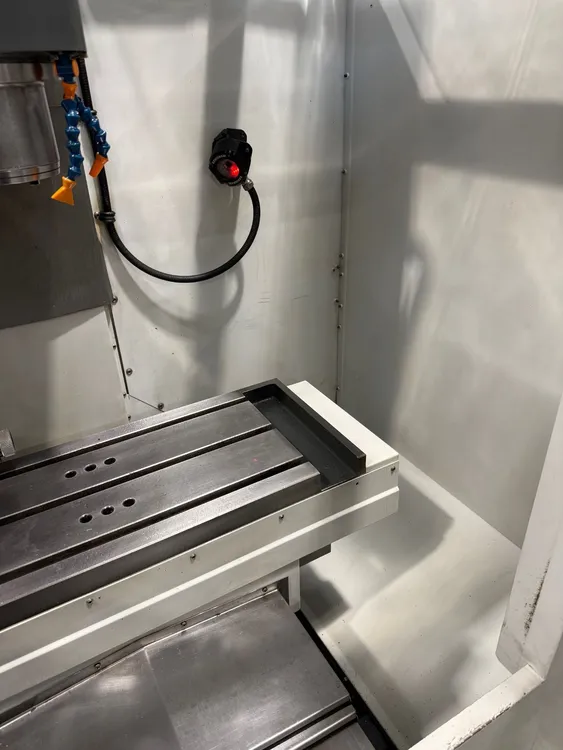

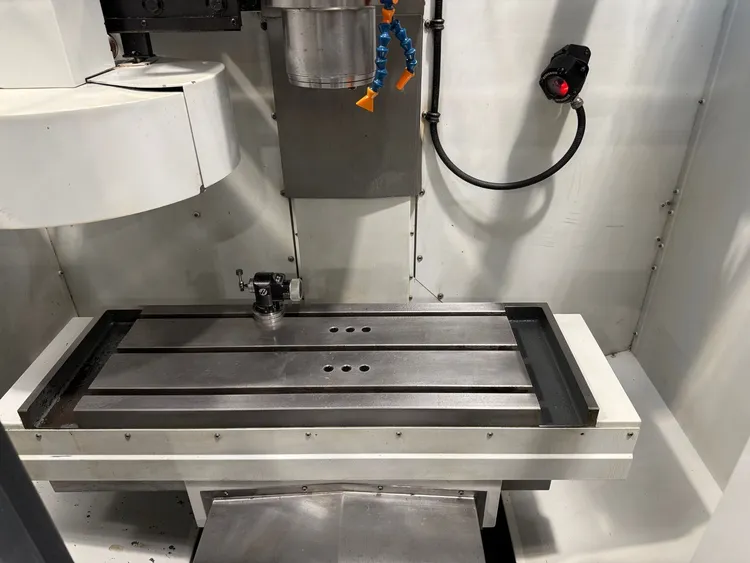

Reinshaw probing and table probe (less tool probe)
(4) Leveling feet
Air blow off gun
Coolant tank & pump
Machine hours- Unknown, Battery died and system had to reloaded and lost original hours

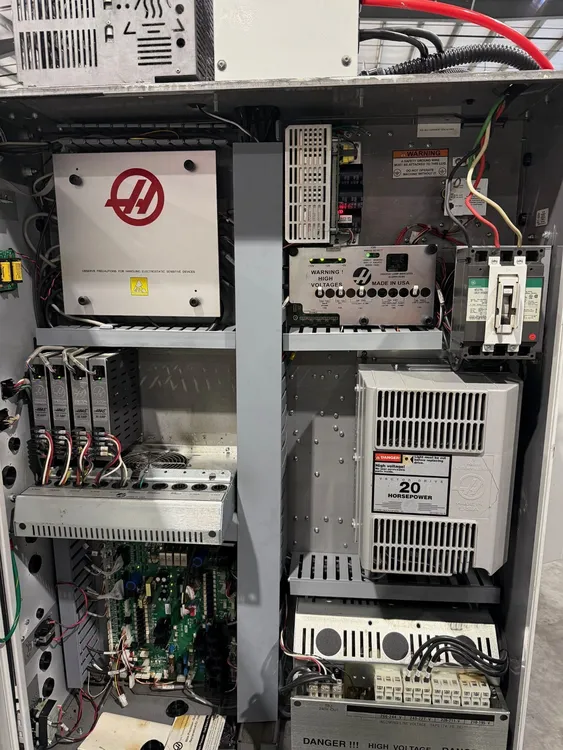

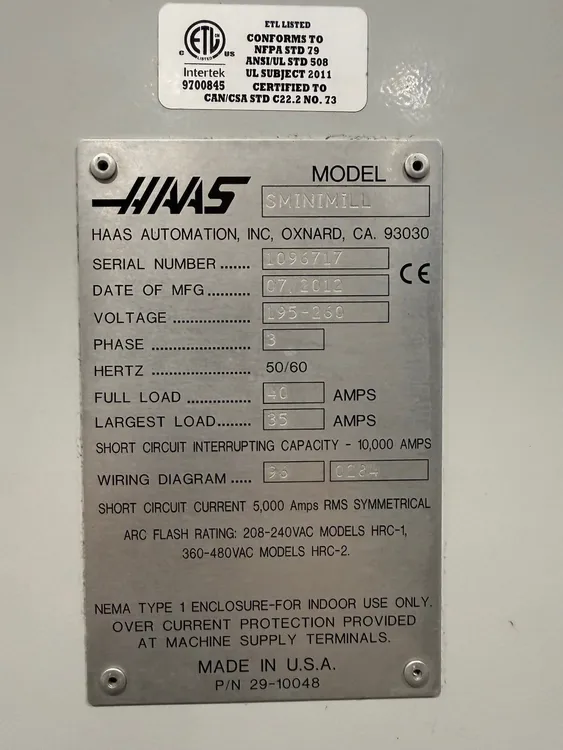

Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 4200 Lbs.
Machine dimensions- 90” x 64” x 100” H
