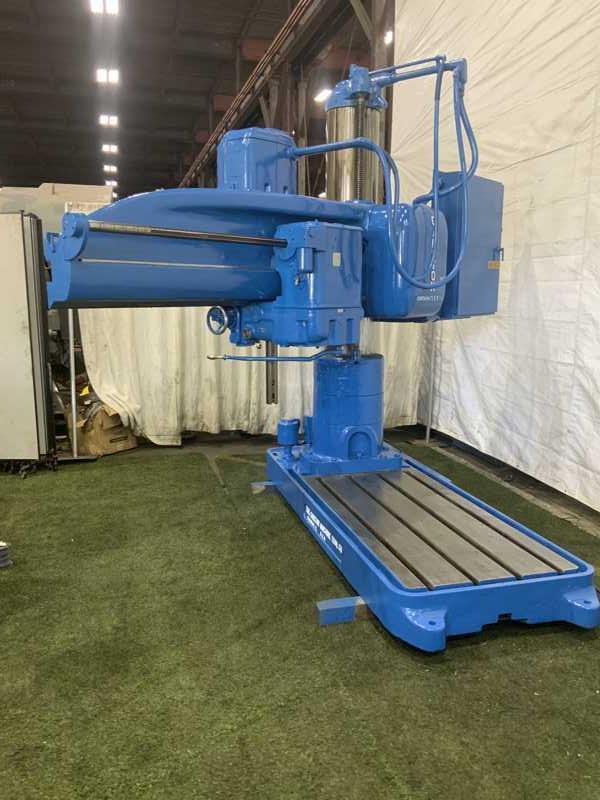

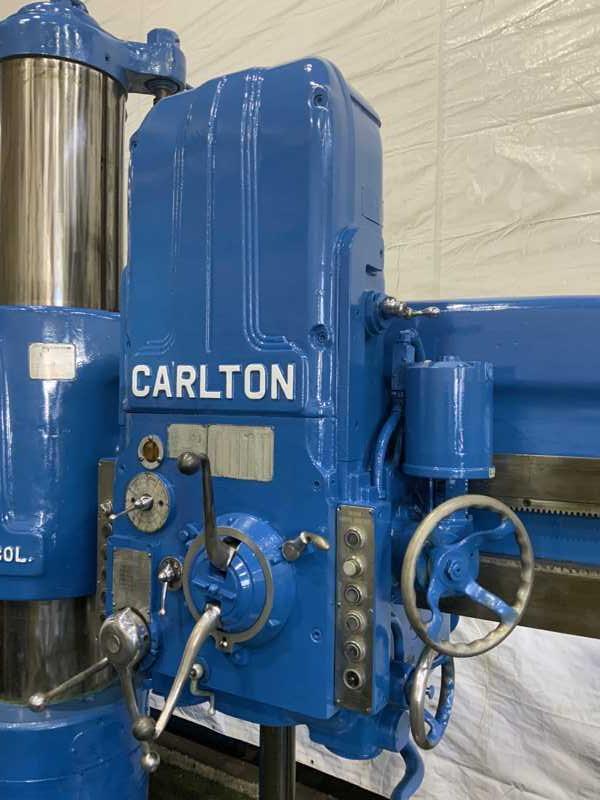

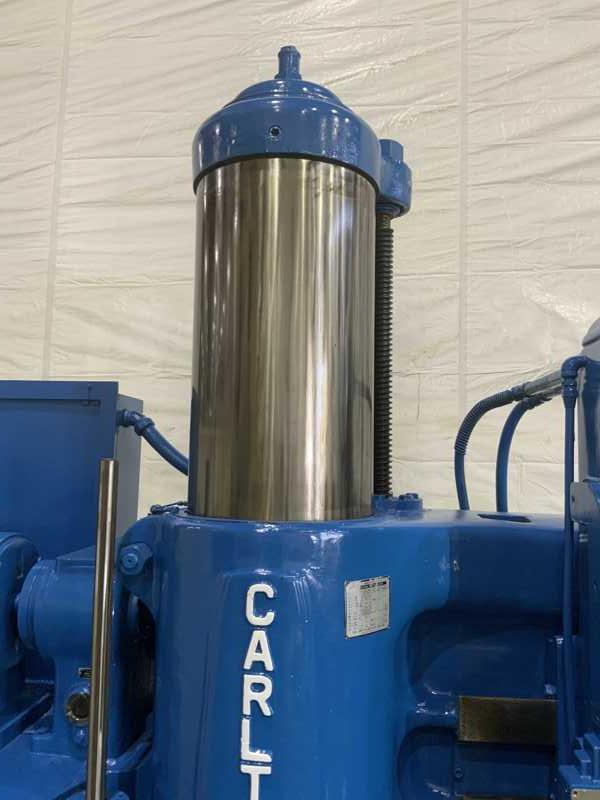

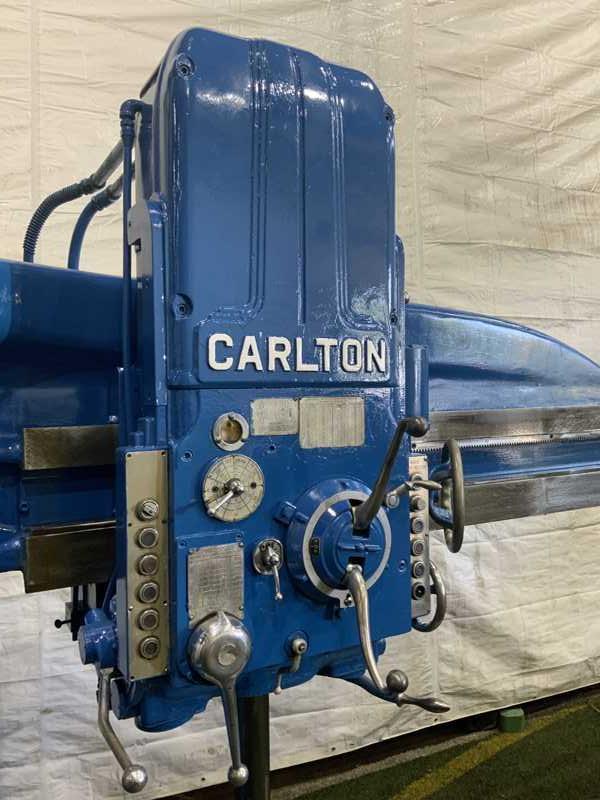

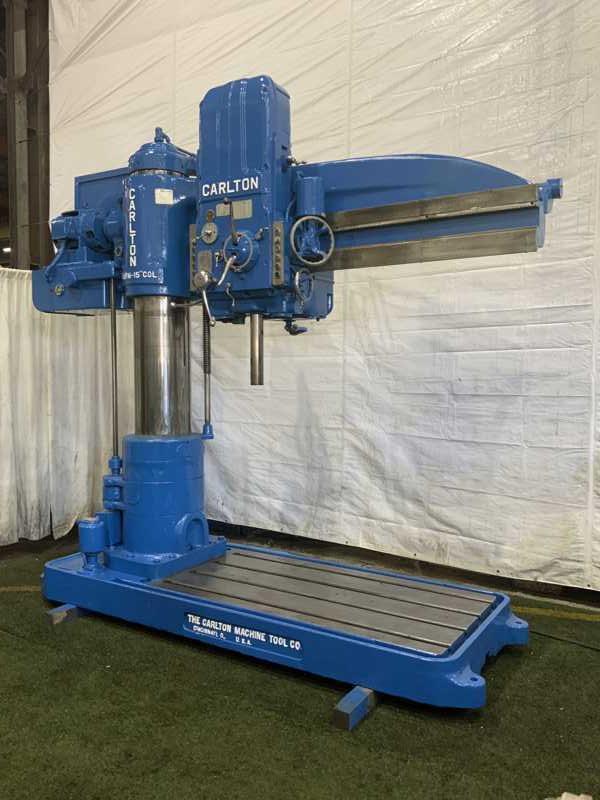

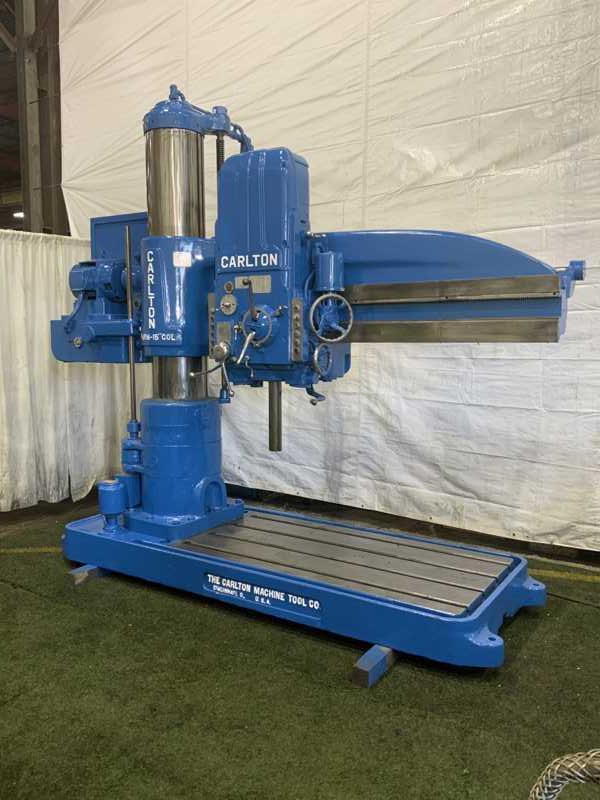

6' x 15" CARLTON MODEL 3A RADIAL ARM DRILL
Year
1969
Stock #
30169
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
6' x 15" CARLTON MODEL 3A RADIAL ARM DRILL
New 1969
| AREA OF BASE | 77" X 42" |
| SPINDLE SPEEDS | (36) 12 TO 1200 RPM |
| FEEDS | (18) .004 TO .125 IPR |
| TAP LEADS | 8, 11-1/2, 14, 18 TPI |
| DIAMETER OF SPINDLE | 3-3/16" |
| TAPER IN SPINDLE | #5 MT |
| SPINDLE TRAVEL | 18" |
| DISTANCE SPINDLE TO COLUMN | 15" MIN, 72" MAX |
| DISTANCE SPINDLE TO BASE | 10-1/2" MIN, 66" MAX |
| TRAVEL OF HEAD ON ARM | 57" |
| TRAVEL OF ARM ON COLUMN | 37-1/2" |
| POWER CLAMPING | YES |
| POWER HEAD TRAVERSE | YES |
| POWER ARM ELEVATION | YES |
| COOLANT | YES |

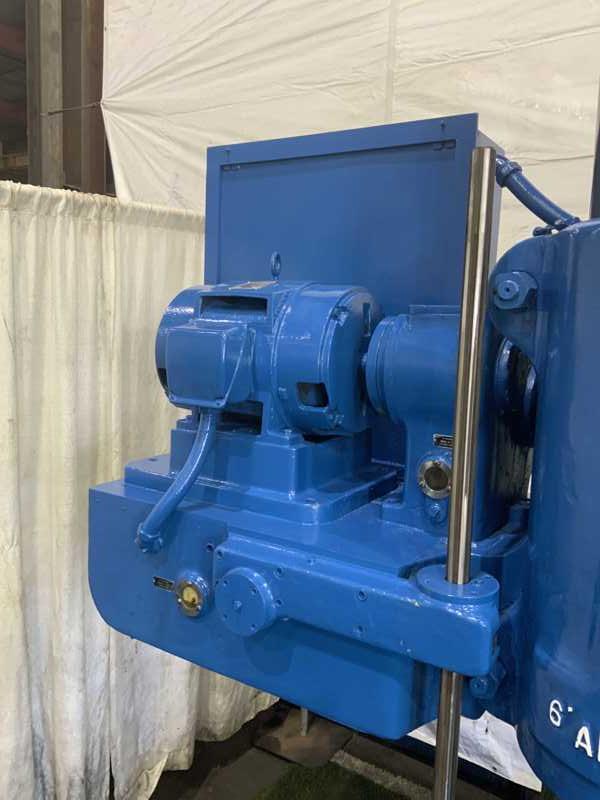

| SPINDLE DRIVE MOTOR | 20 |
