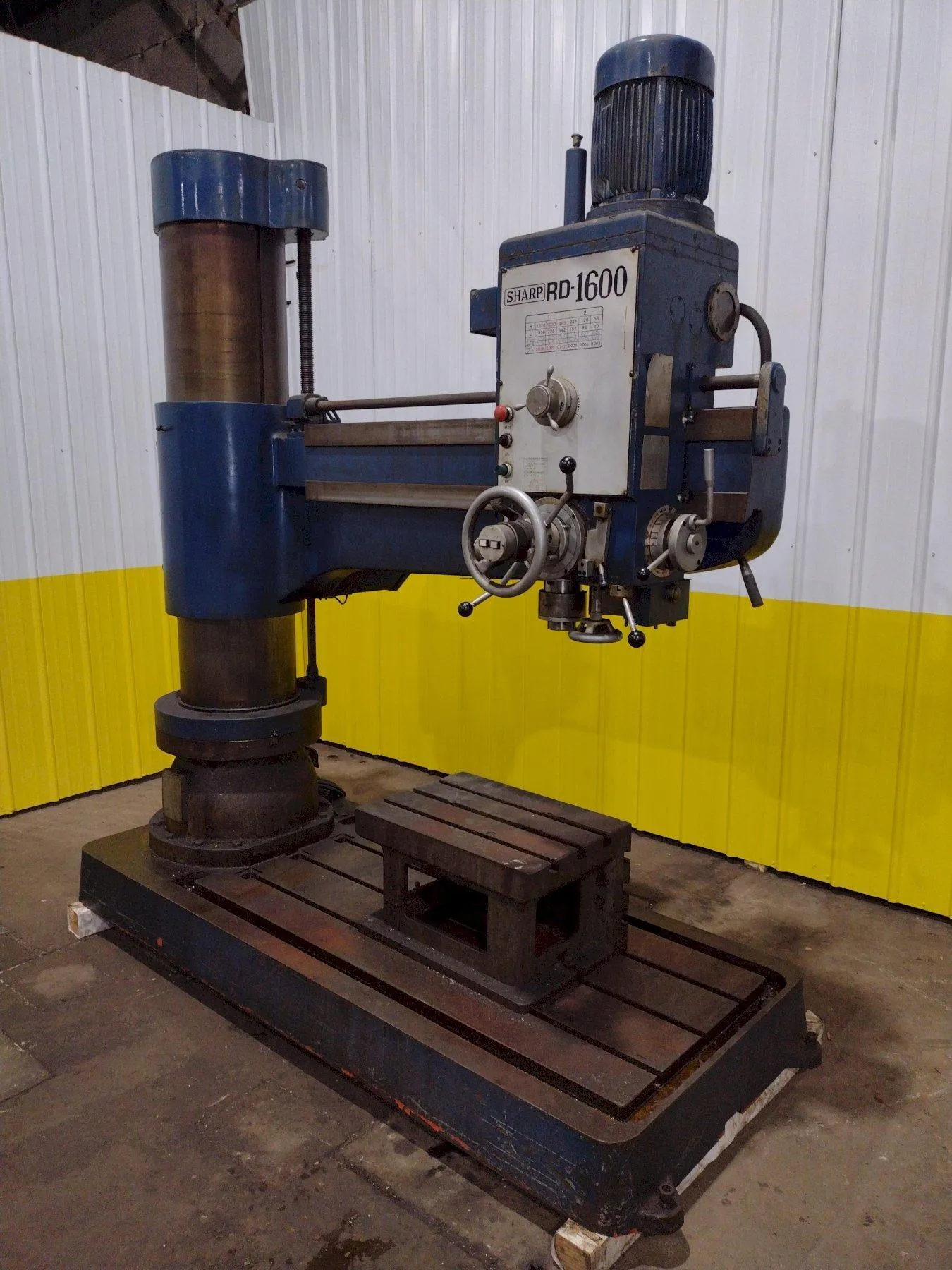

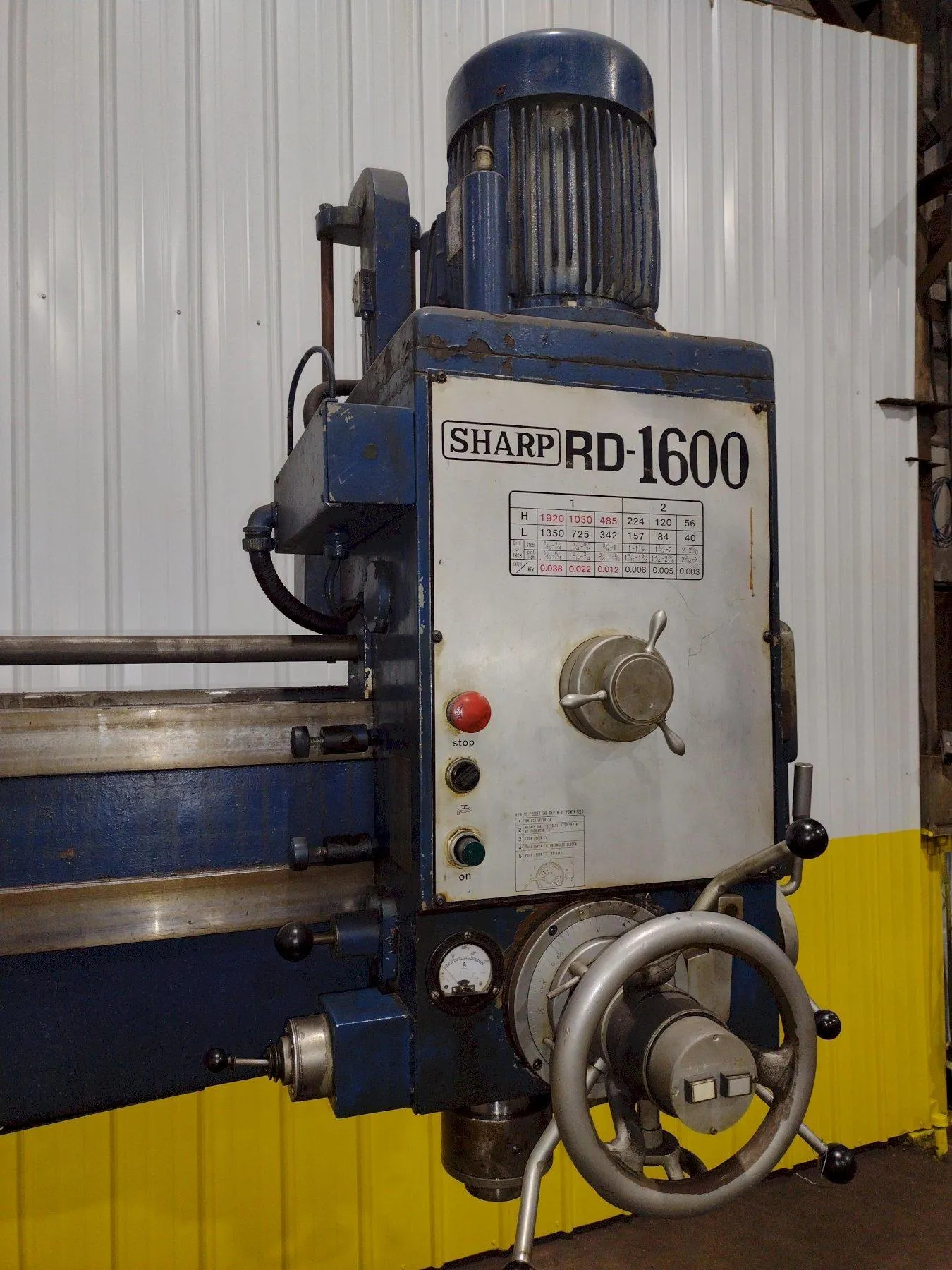

5' x 17" SHARP MODEL #RD-1600 RADIAL ARM DRILL
Year
Not provided
Stock #
30167
Condition
Not specified
Keep Scrolling To Learn More
Specifications
Equipped With
5' x 17" SHARP MODEL #RD-1600 RADIAL ARM DRILL
COLUMN DIAMETER ...................... 17"
COLUMN TO SPINDLE .................... 13" - 63"
TRAVEL OF SPINDLE HEAD ............... 49.6"
SPINDLE TO BASE ...................... 13" - 63"
ELEVATING HEIGHT OF ARM .............. 35.5"
AREA OF TABLE ........................ 27” x 19" x 15"
BASE DIMENSTIONS ..................... 98" X 41" X 8"
TAPER HOLE IN SPINDLE ................ MT#5
SPINDLE (RPM RANGE X STEPS) .......... 40 TO 1920 (12)
SPINDLE FEED (IPR X STEPS) ........... 0.003" TO 0.038" (6)
MAIN MOTOR ........................... 7.5 HP
ELEVATING MOTOR ...................... 2 HP
CLAMPING COLUMN HEADSTOCK ............ 1/2 HP
CLAMPING ARM ......................... 1/8 HP
COOLANT PUMP ......................... YES
MACHINE HEIGHT FROM FLOOR ............ 124"
BOX TABLE ............................ YES
COOLANT SYSTEM ....................... YES
WORK LIGHT ........................... YES
