Equipped With

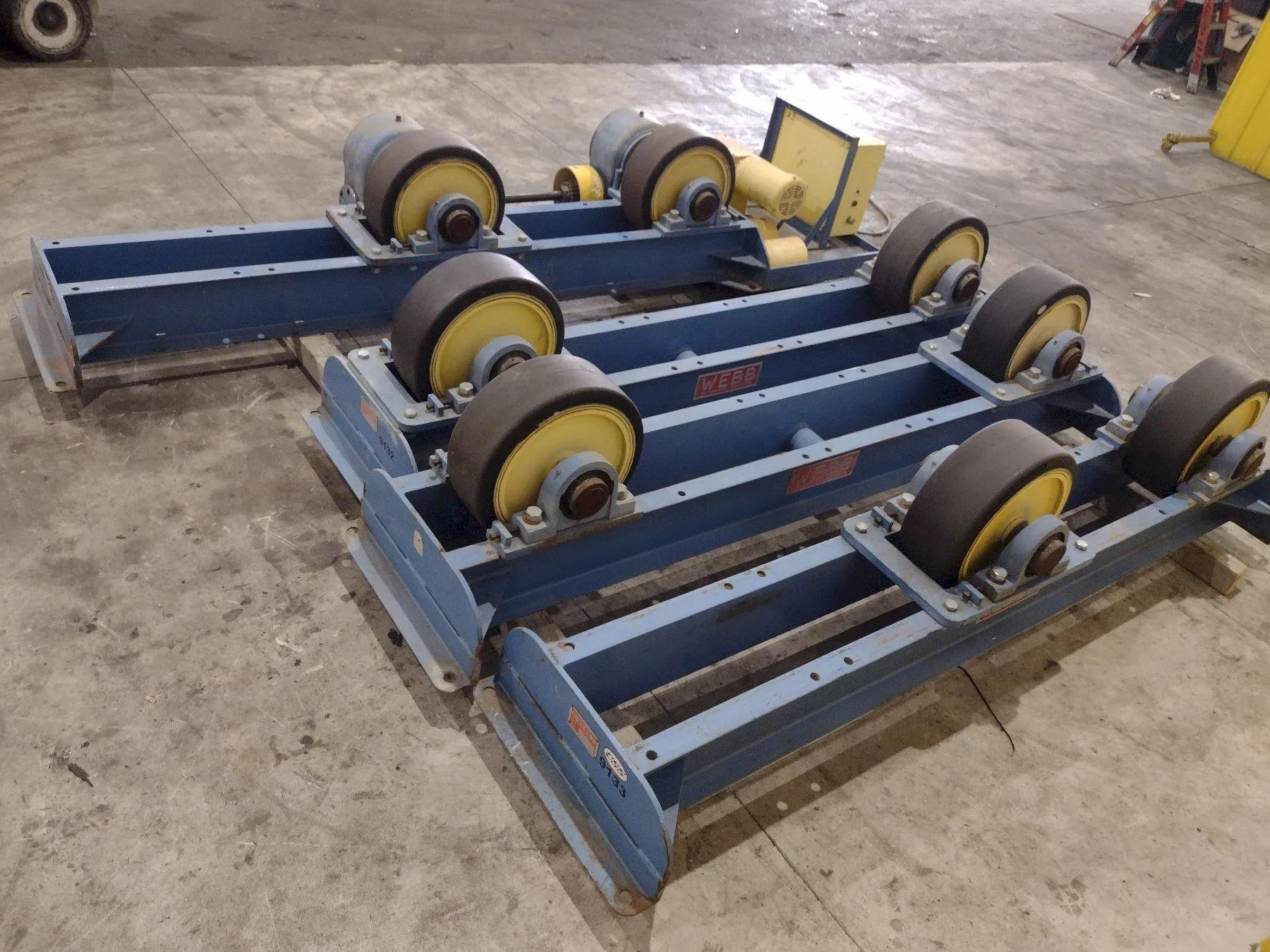

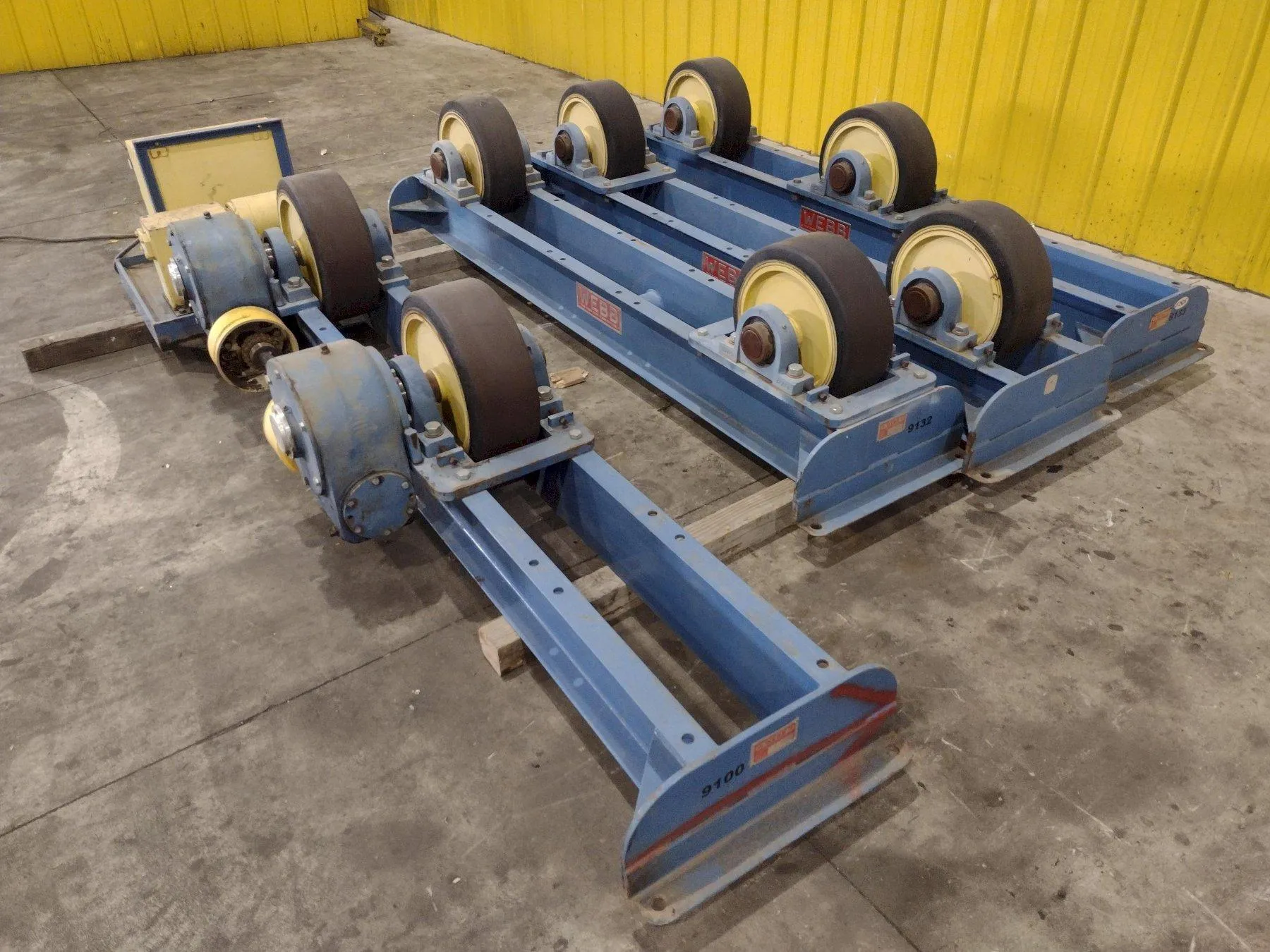

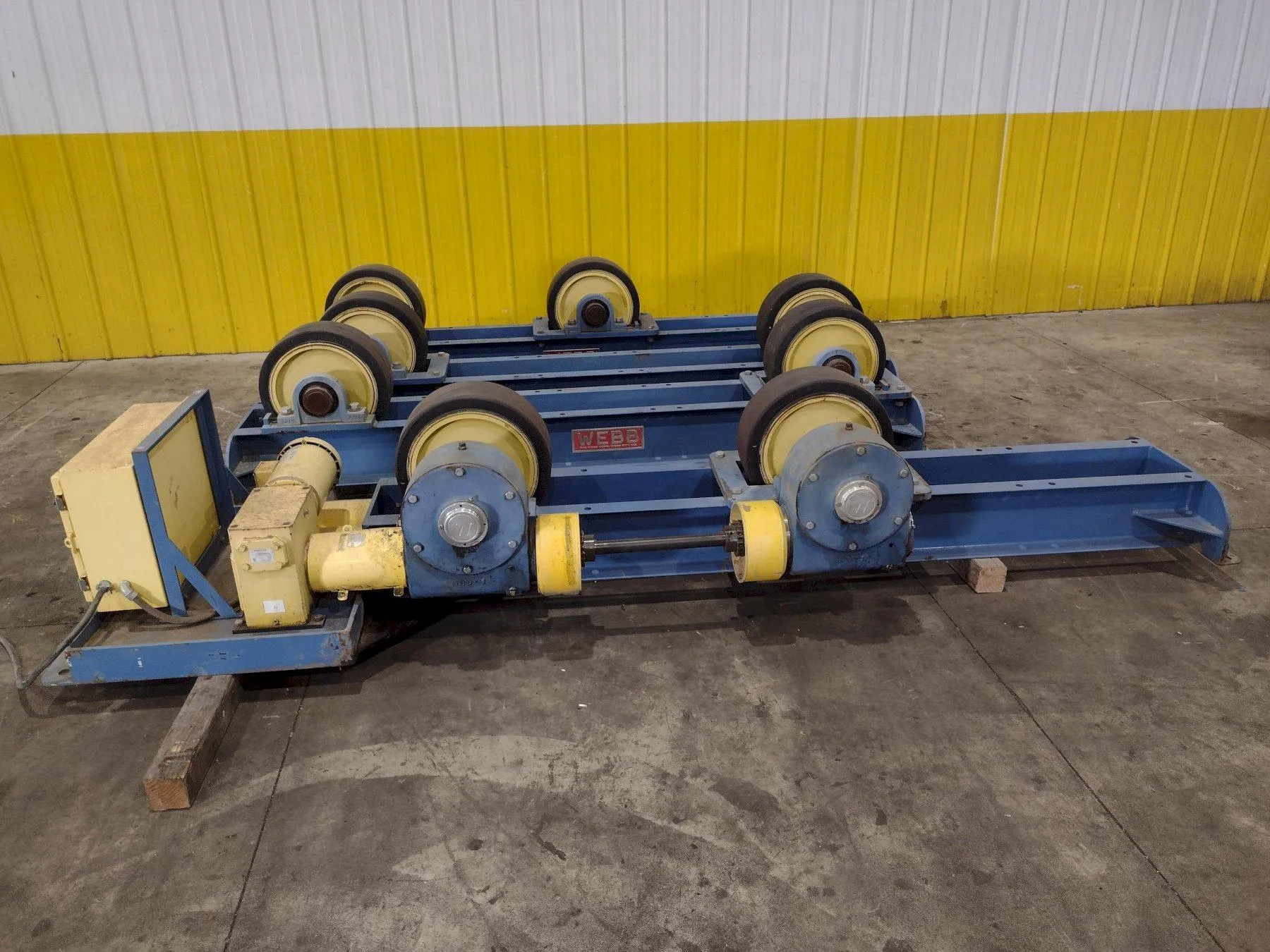

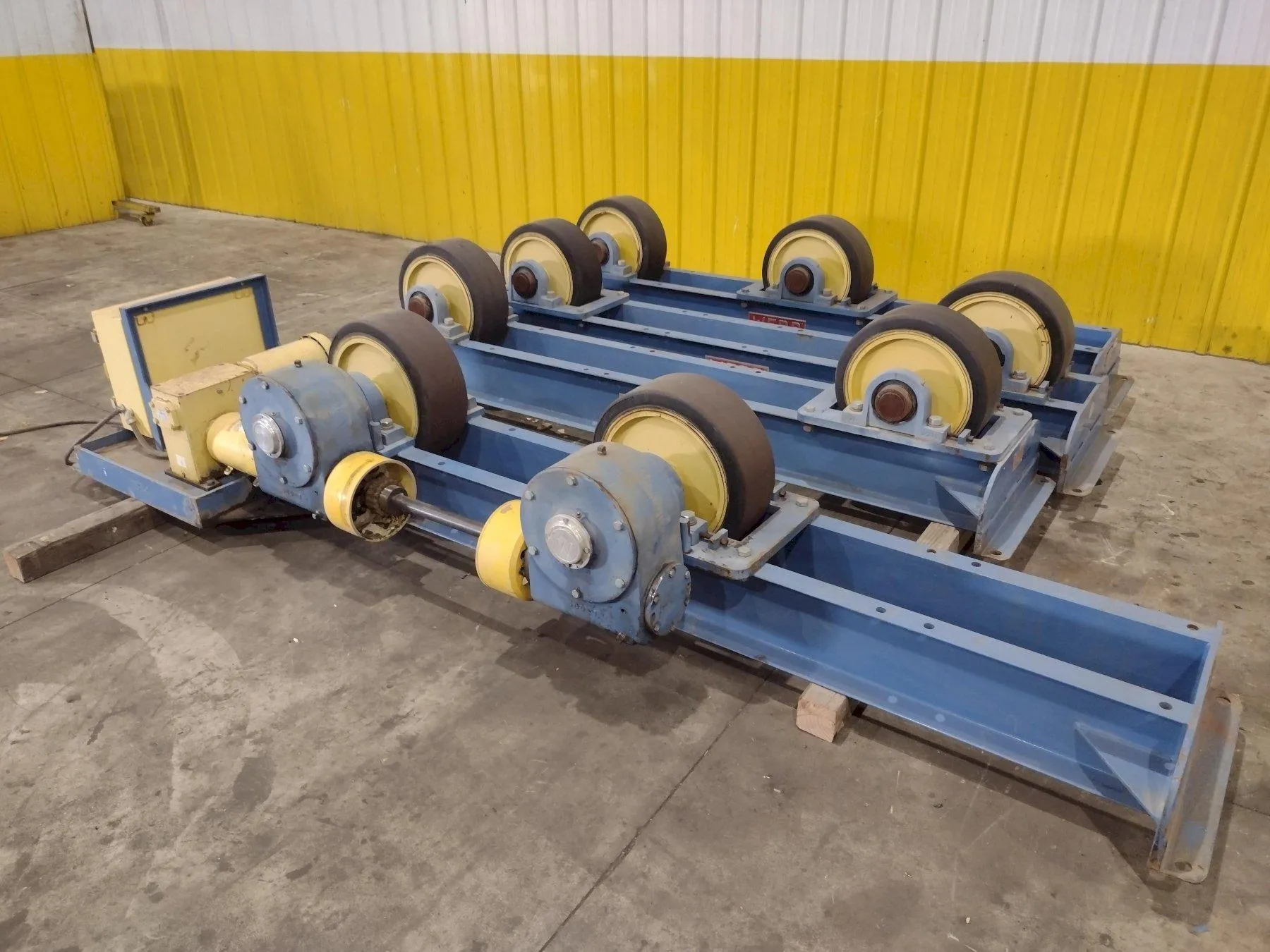

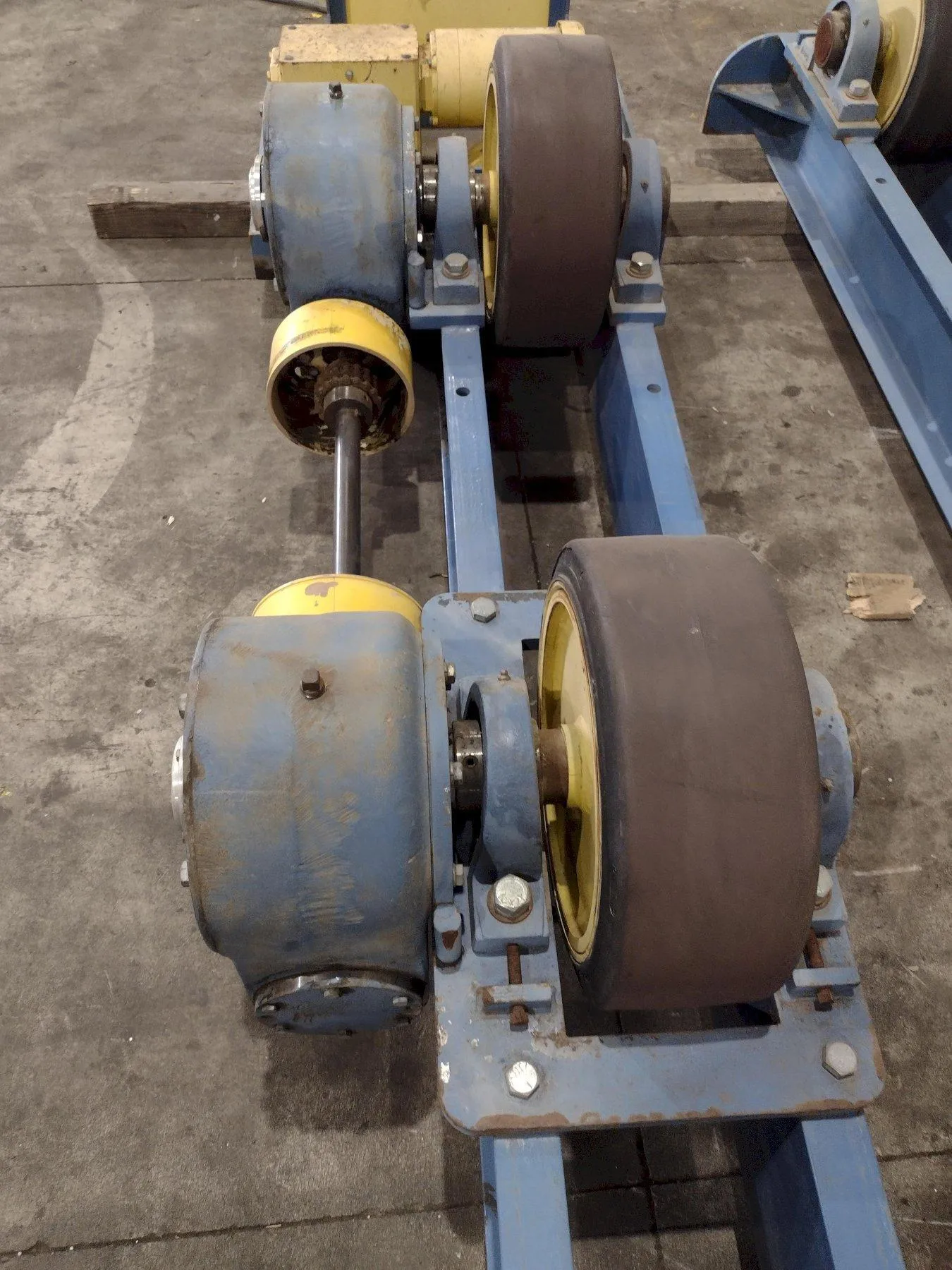

40 TON (80,000 LBS) x 15' WEBB MODEL R-500 POWERED TANK TURNING ROLLS; 1 DRIVE & 3 IDLERS

SPECIFICATIONS:

(3) Power Units
SERIAL 2013-O81
MODEL R-500
CAPACITY  20,000lb
Diameter Size up to 15’

 Idler units (quantity 3)  Model R-500 –  20,000lb Capacity each- up to 15’ Diameter Size

Total capacity 4 rolls, 80,000 lbs, 40 ton

R-500 SPECS

Turning Capacity(1 Idler) in Tons 20

 Weight Capacity, Each Unit, in Tons 10

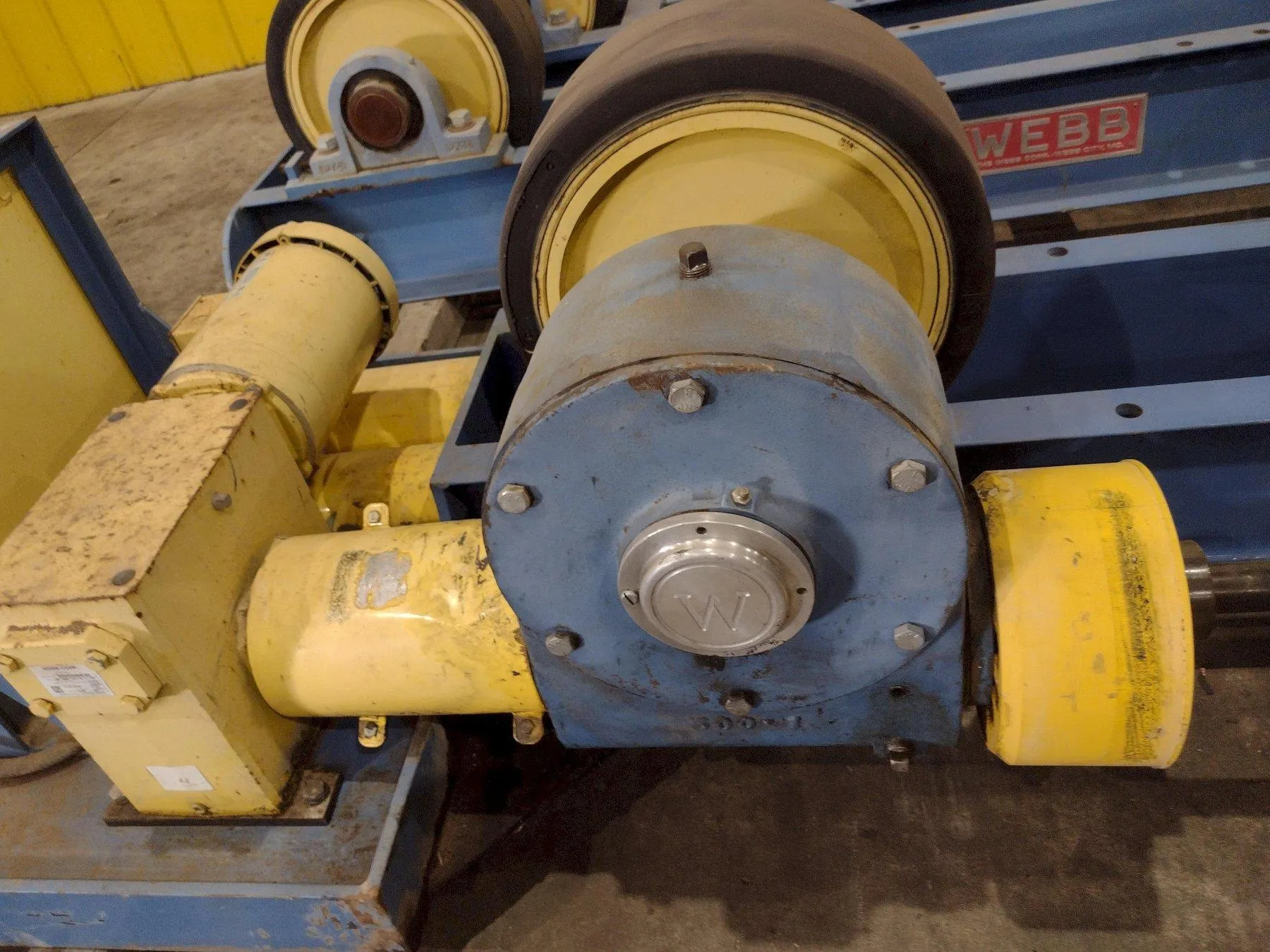

 Motor Horsepower 2

 Speed Range, IPM 7-58

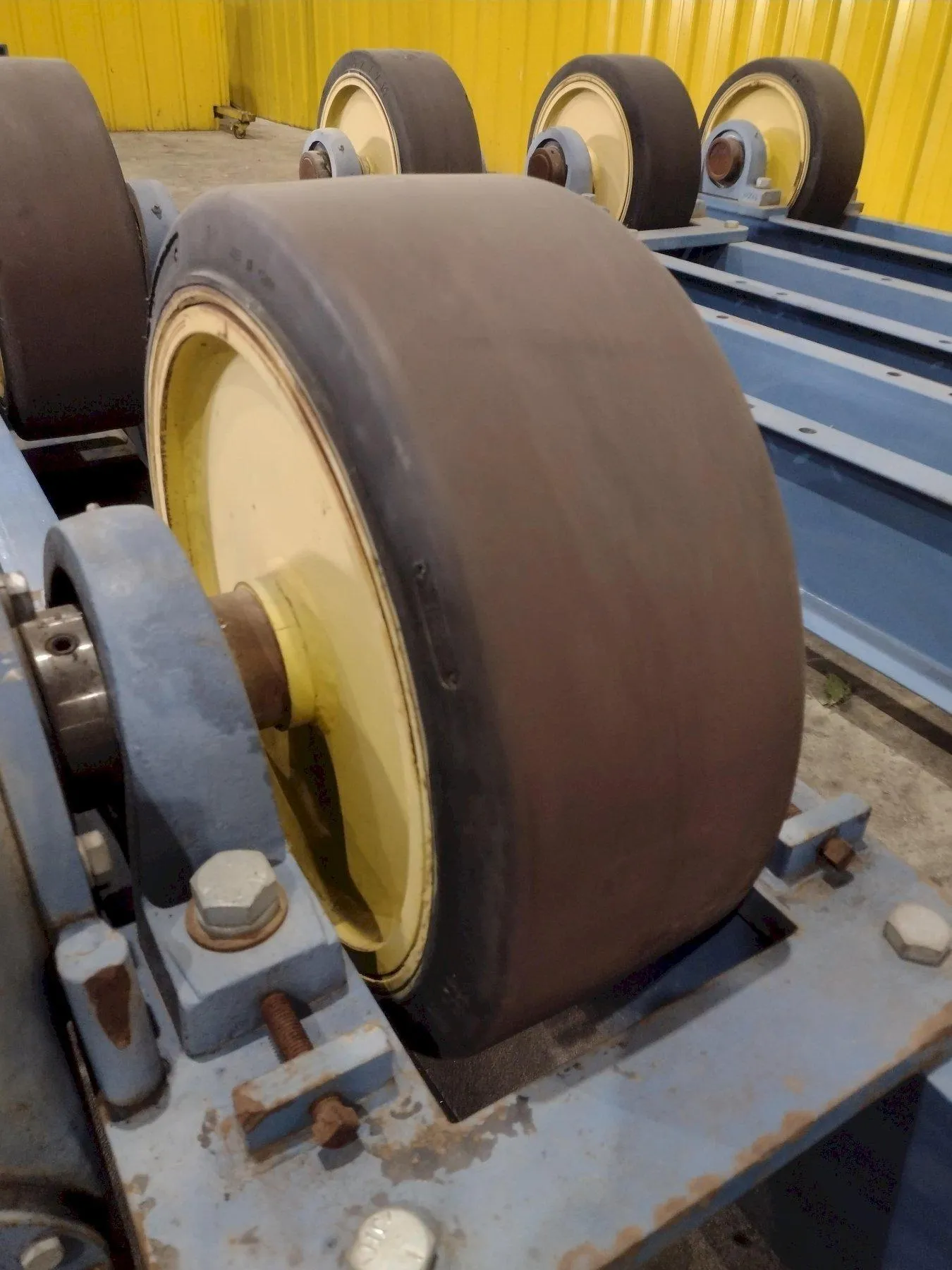

 Wheel Face Width 7”

 Tires Per Axle 1

 Maximum Working Diameter 15’

 Minimum Working Diameter 6”

 Tire Diameter 18”

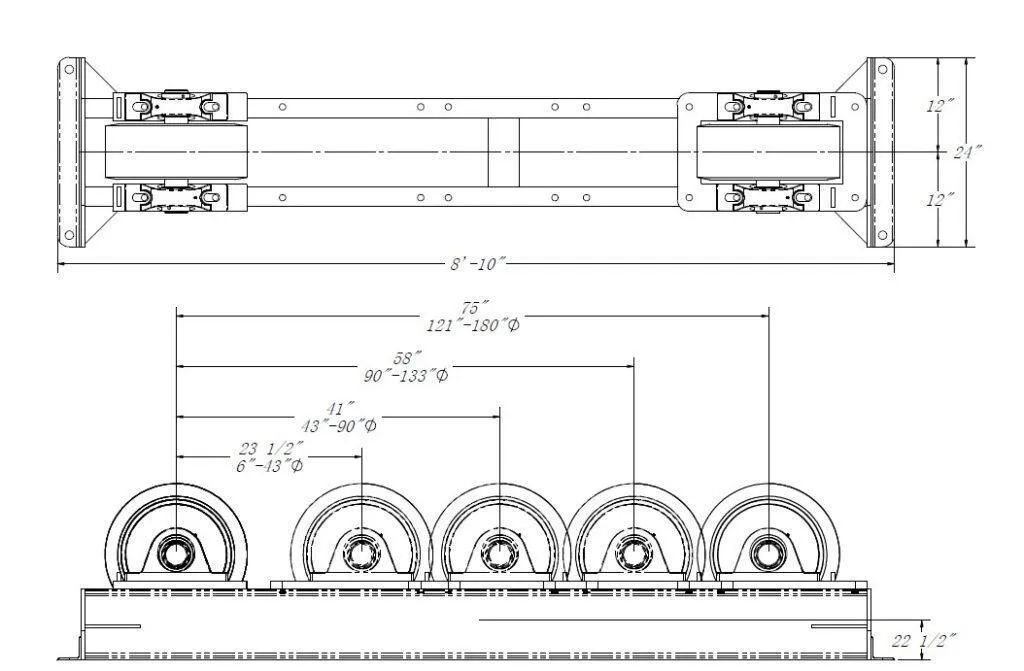

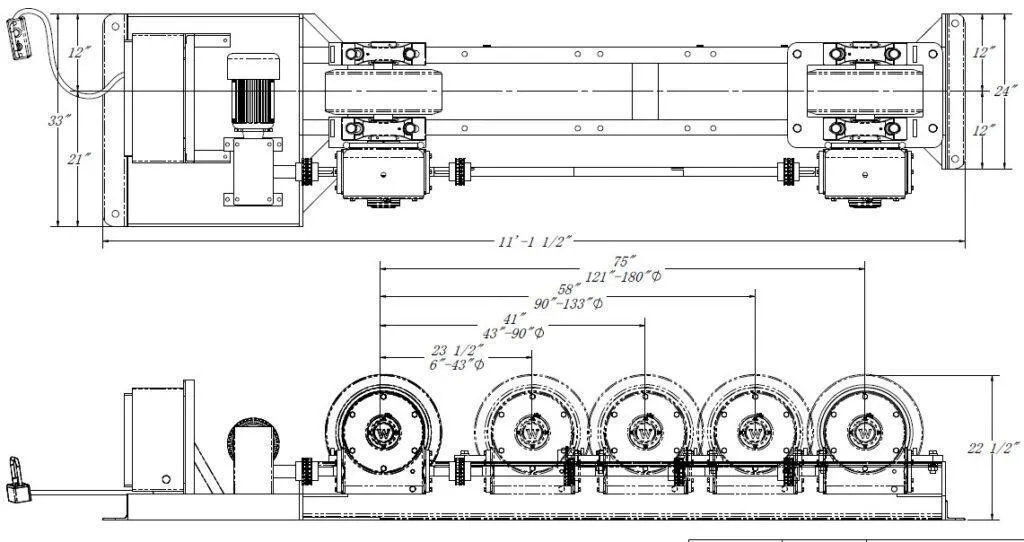

 Wheel Center Spacing 23 ½”, 41”, 58”, 75”

 Height to Top of Tire 22 ½”

 Power Unit Length 133 ½”

 Power Unit Width 33”

Power Unit Shipping Weight 2,200lbsIdler Unit Length 106”

 Idler Unit Width 24“

 Idler Unit Shipping Weight 850bs
