Equipped With

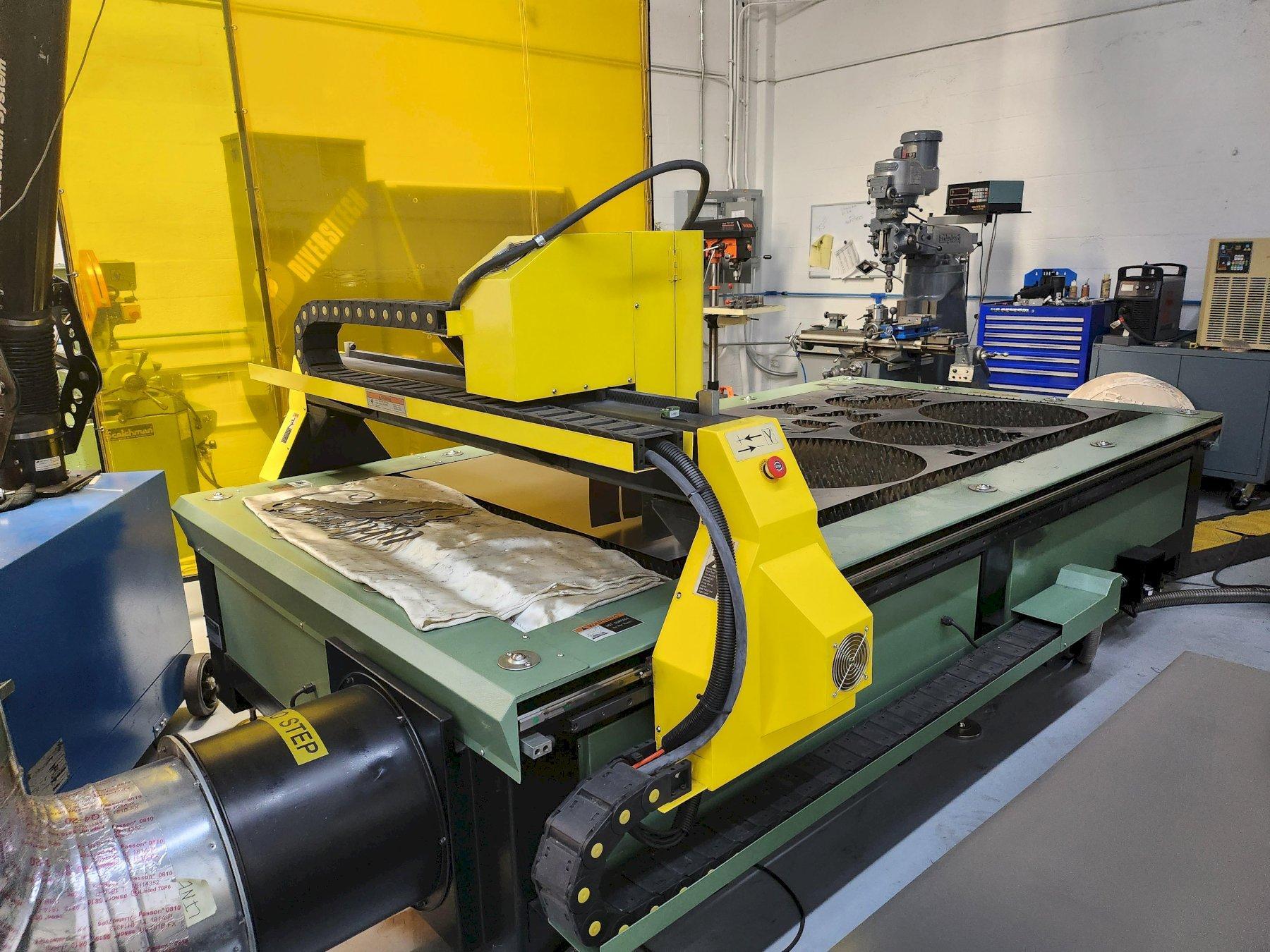

4' X 8' PIRANHA C408 PLASMA CUTTING SYSTEM

New: 2020

Specifications:
Table Size:  4 ft × 8 ft
Frame and Bridge Construction:  Fabricated Machine Table, Welded Steel Bridge
Drive Motor (X-Axis):  Two Stepper Motors
Drive Motor (Y-Axis):  Stepper Motor
Drive System (X-Axis):  Rack and Pinion (Each Side)
Drive System (Y-Axis):  Rack and Pinion
Drive System (Z-Axis):  Ball Screw
Torch Control:  Arc Voltage with Initial Height Sensing
Torch Protection:  Pneumatic Breakaway
Approximate Dimensions:  138 in × 92 in × 60 in H
Approximate Weight:  1700 lbs

Equipped With:

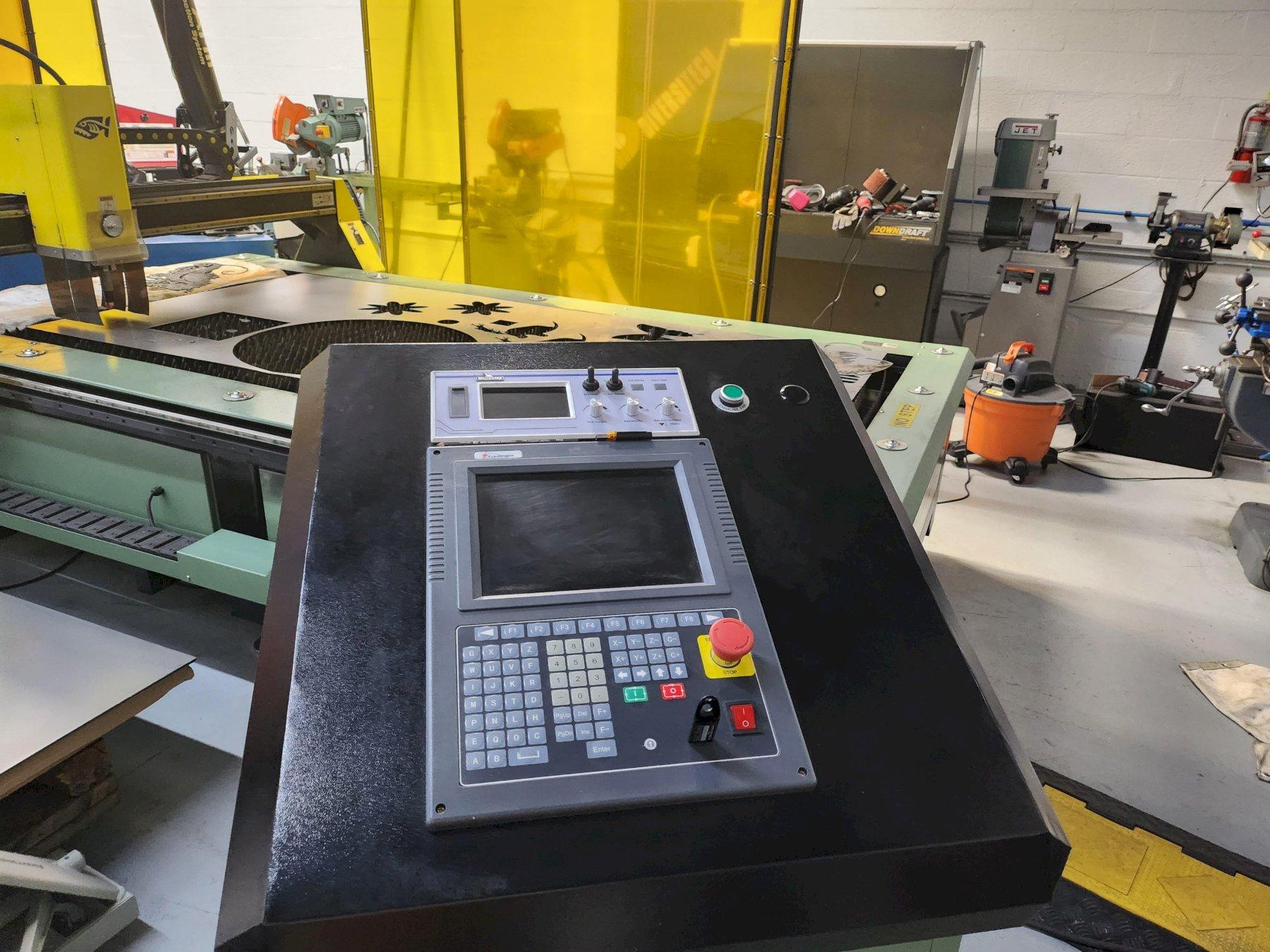

Starfire CNC Control

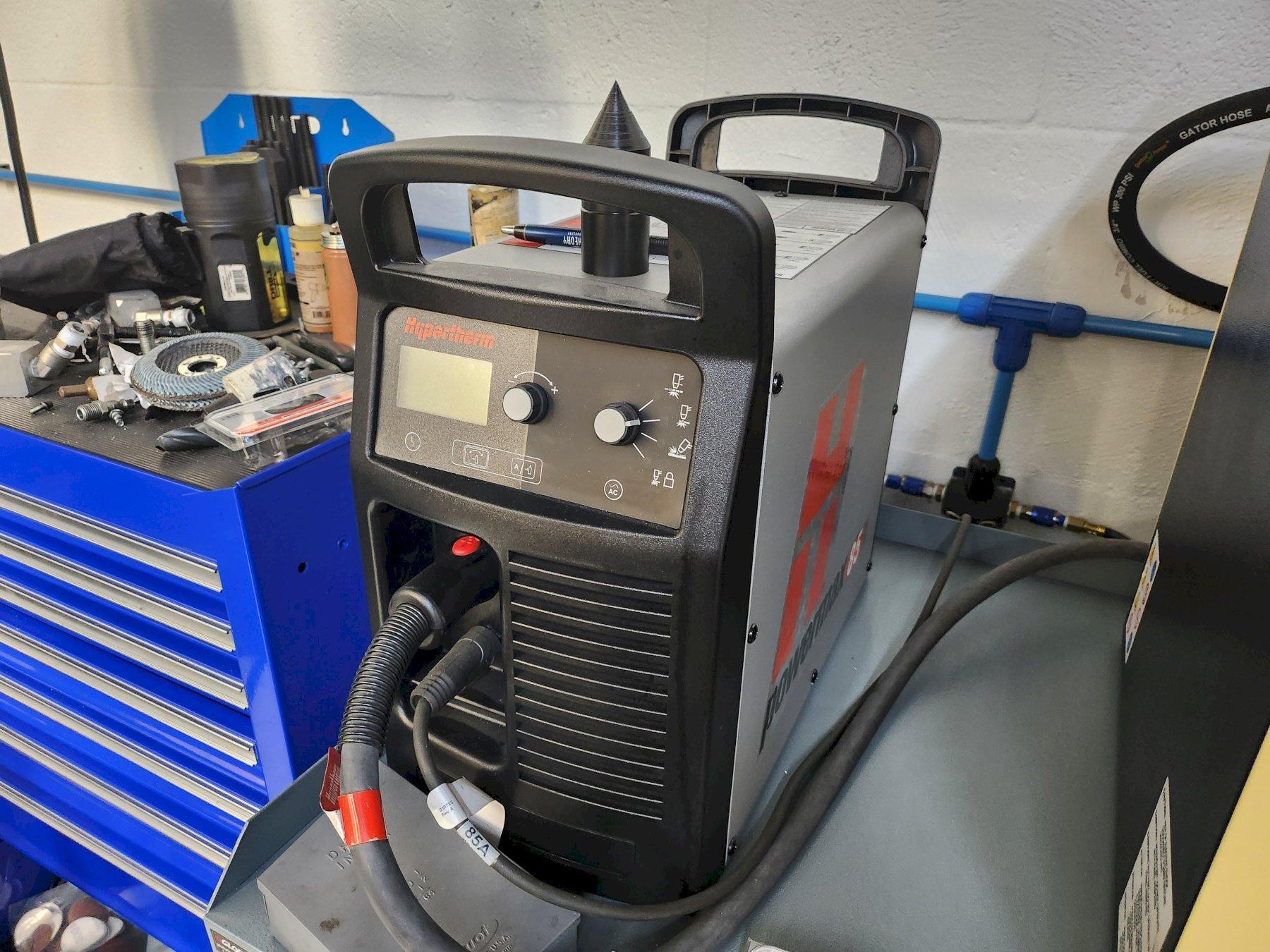

Hypertherm 85 Power Source
ProNest 2019 LT Programming System
Microstep Programmable Torch Height Control
Stepper Motors and Drives
Breakaway Torch Mounting
Dual Side Drive
Rugged Steel Construction
