Equipped With

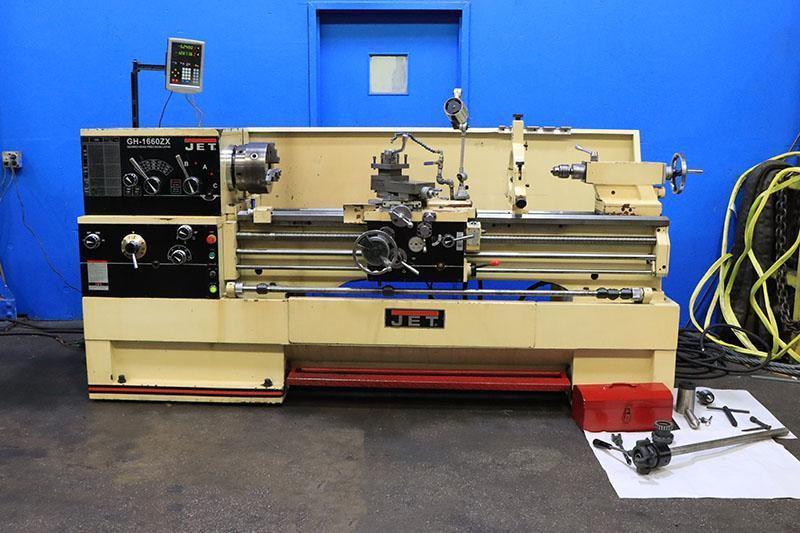

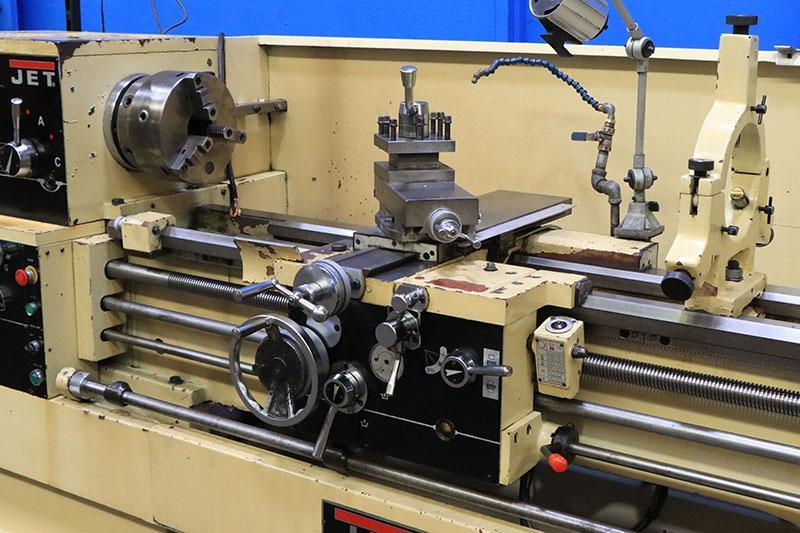

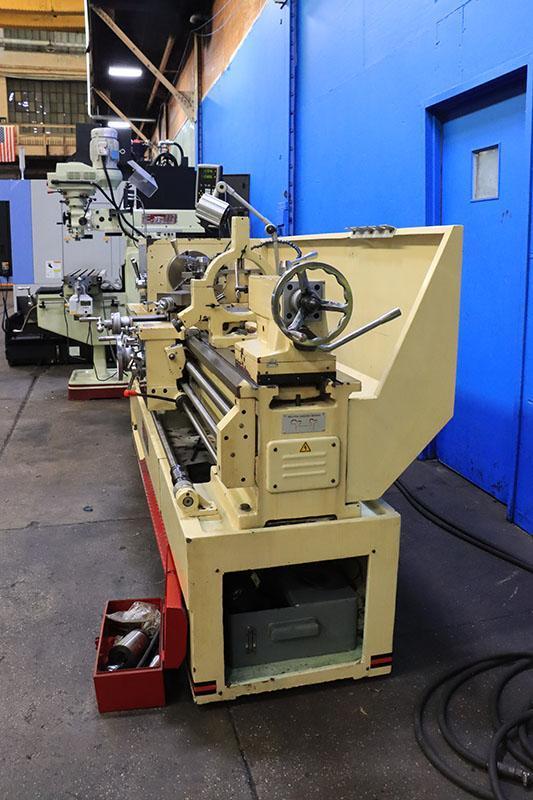

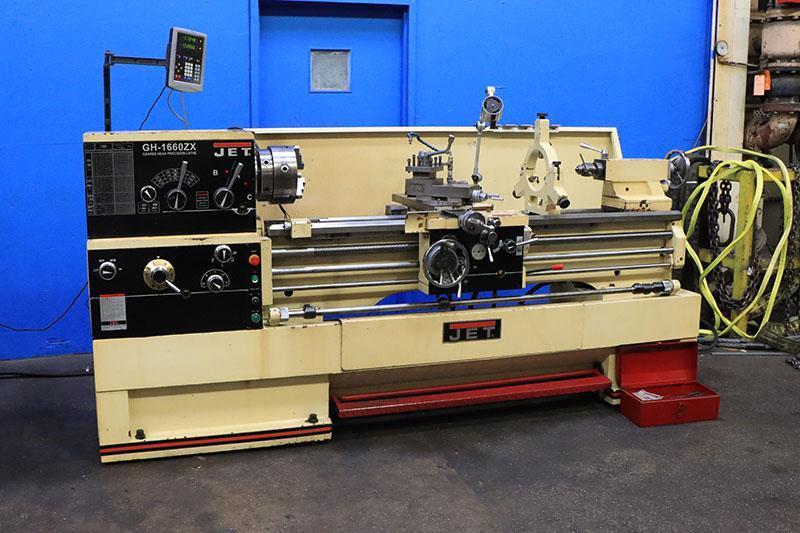

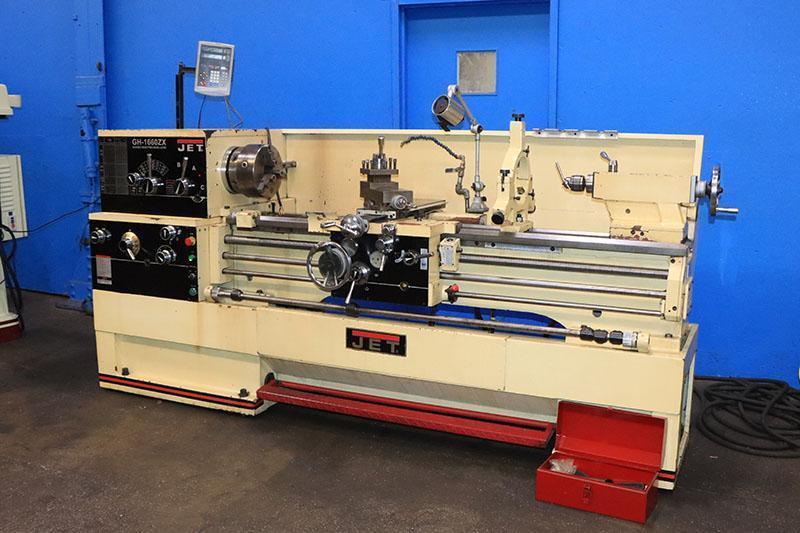

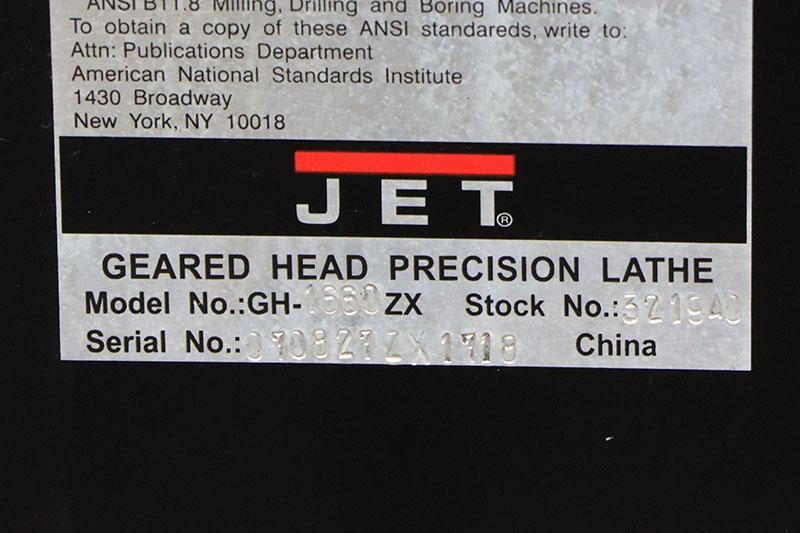

16"/25" X 60" JET MODEL GH-1660 ZX GAP BED ENGINE LATHE

NEW 2007

SPECIFICATIONS:

SWING OVER BED ........................ 16"

SWING OVER GAP ........................ 25-7/8"

SWING OVER CROSS SLIDE ................ 10"

DISTANCE BETWEEN CENTERS .............. 60"

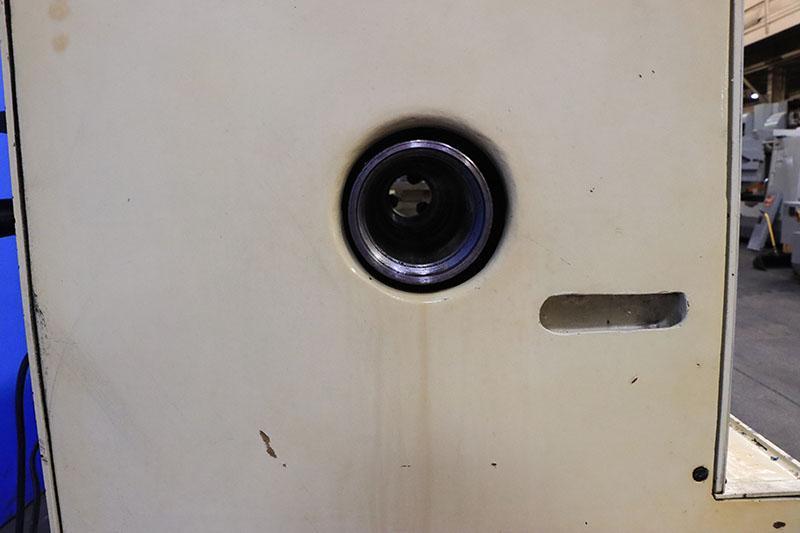

SPINDLE HOLE .......................... 3-1/8"

SPINDLE NOSE, CAMLOCK, SIZE ........... D1-8"

WIDTH OF BED .......................... 13-3/8"

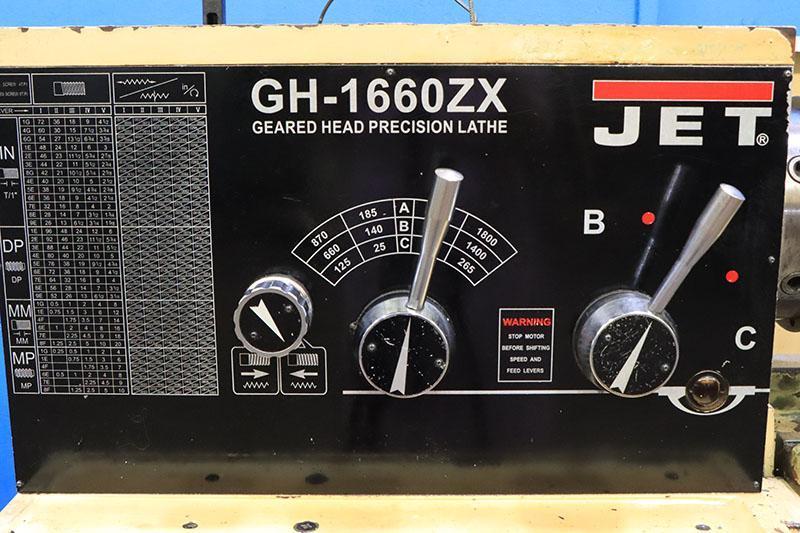

SPINDLE SPEEDS (12) ................... 25 - 1,800 RPM

FEED CHANGES, LONGITUDINAL (122) ...... .0015 - .0913 IPR

FEED CHANGES, CROSS (122) ............. .0006 - .0365 IPR

THREADS, INCH (61) .................... 1-5/8 - 72 T.P.I.

METRIC (24) ........................... .5 - 20 MM

WIDTH OF BED .......................... 13-3/8"

TAILSTOCK SPINDLE CENTER .............. #4 MORSE TAPER

TAILSTOCK SPINDLE TRAVEL .............. 5"

APPROXIMATE DIMENSIONS ................ 116" x 40" x 48"

APPROXIMATE WEIGHT .................... 5,800 LBS.

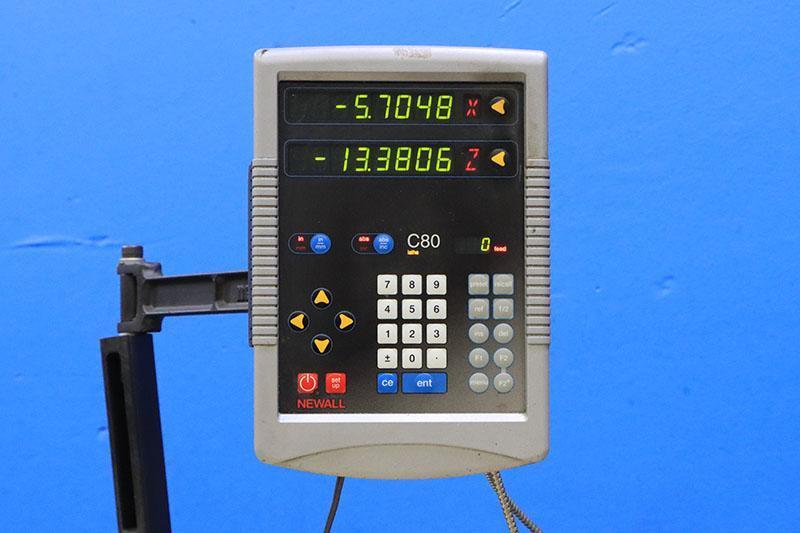

NEWALL MODEL: C80 TWO AXIS DIGITAL READOUT

- REMOVABLE GAP BED

- INCH AND METRIC THREADING CAPABILITY

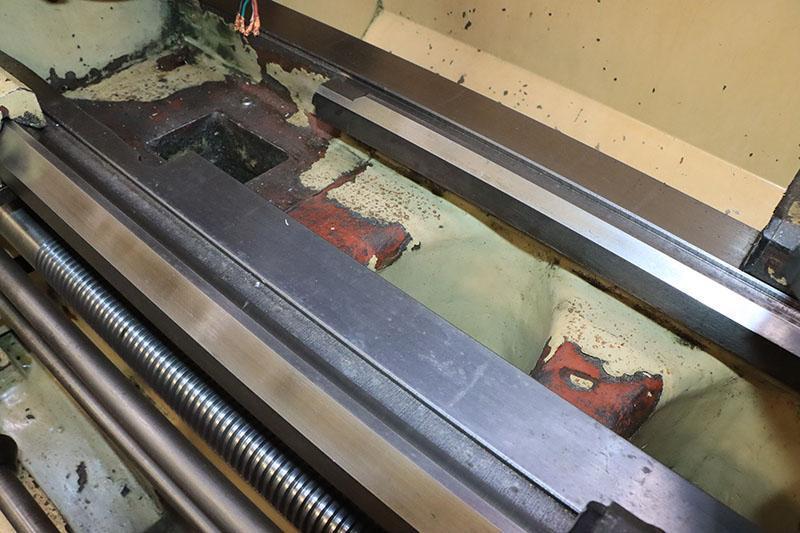

- HARDENED AND GROUND BED WAYS

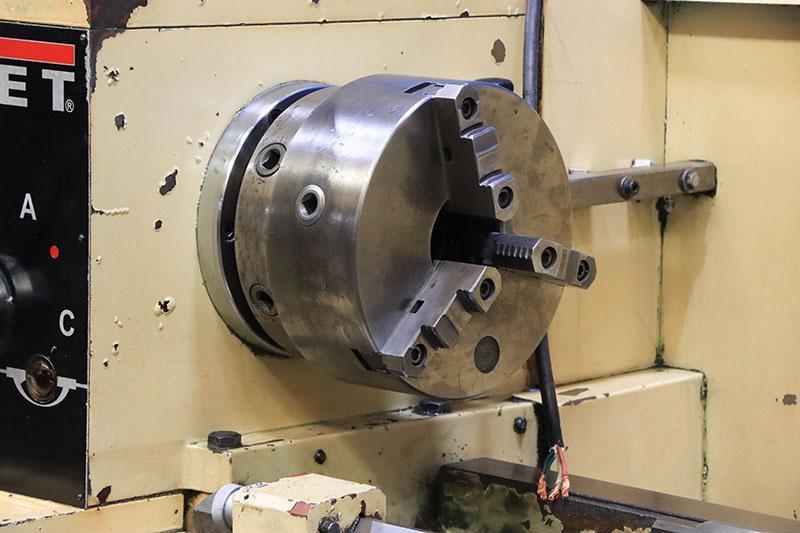

- 10" 3-JAW CHUCK

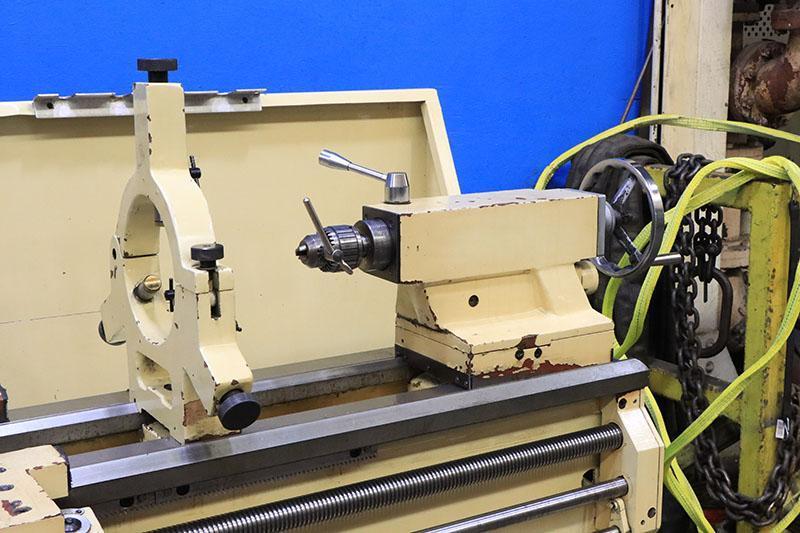

- STEADY REST

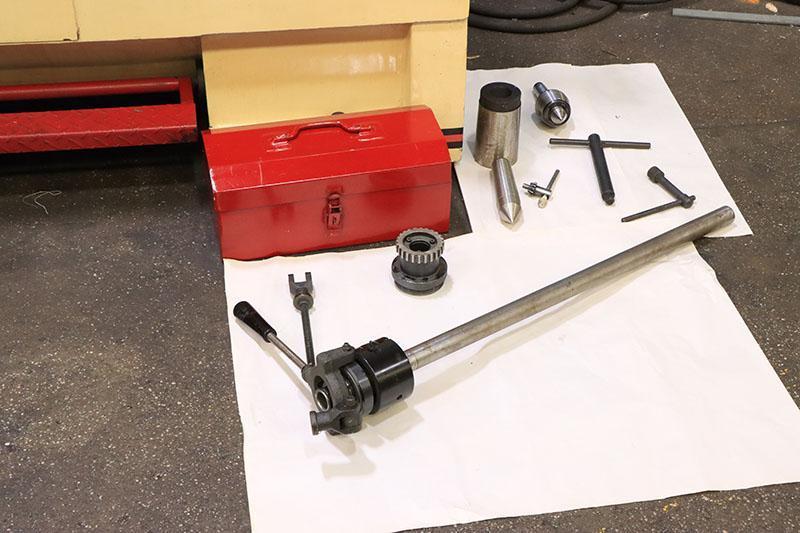

- 5C-LEVER TYPE COLLET CLOSER & NOSE PIECE

- FOURWAY TURRET TOOLPOST

- DRILL CHUCK FOR TAILSTOCK

- LIVE CENTER FOR TAILSTOCK

- THREADING DIAL

- MICROMETER CARRIAGE STOP

- MULITPLE POSITION CARRIAGE STOP

- FOOTBRAKE

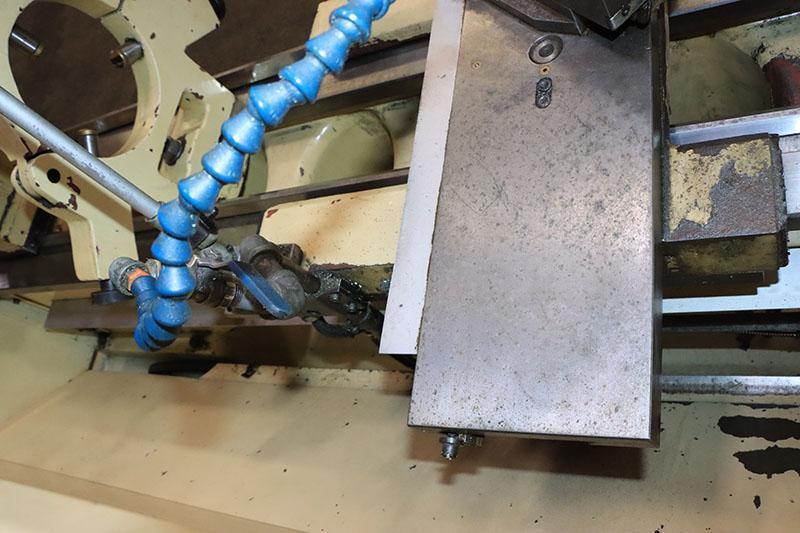

- SELF-CONTAINED COOLANT SYSTEM W/FULL LENGTH SPLASH GUARD

- 7-1/2 HORSE POWER SPINDLE DRIVE MOTOR
