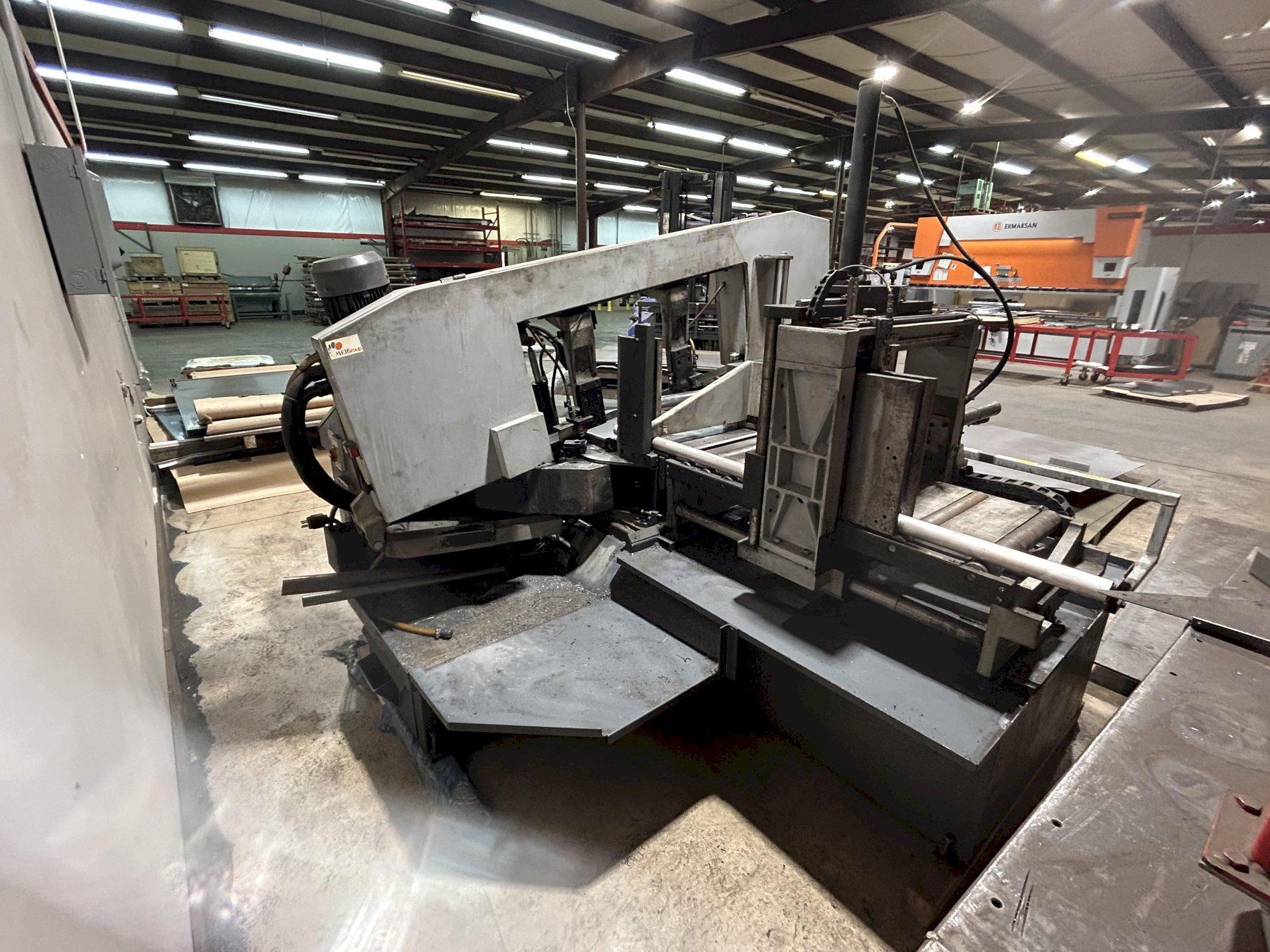

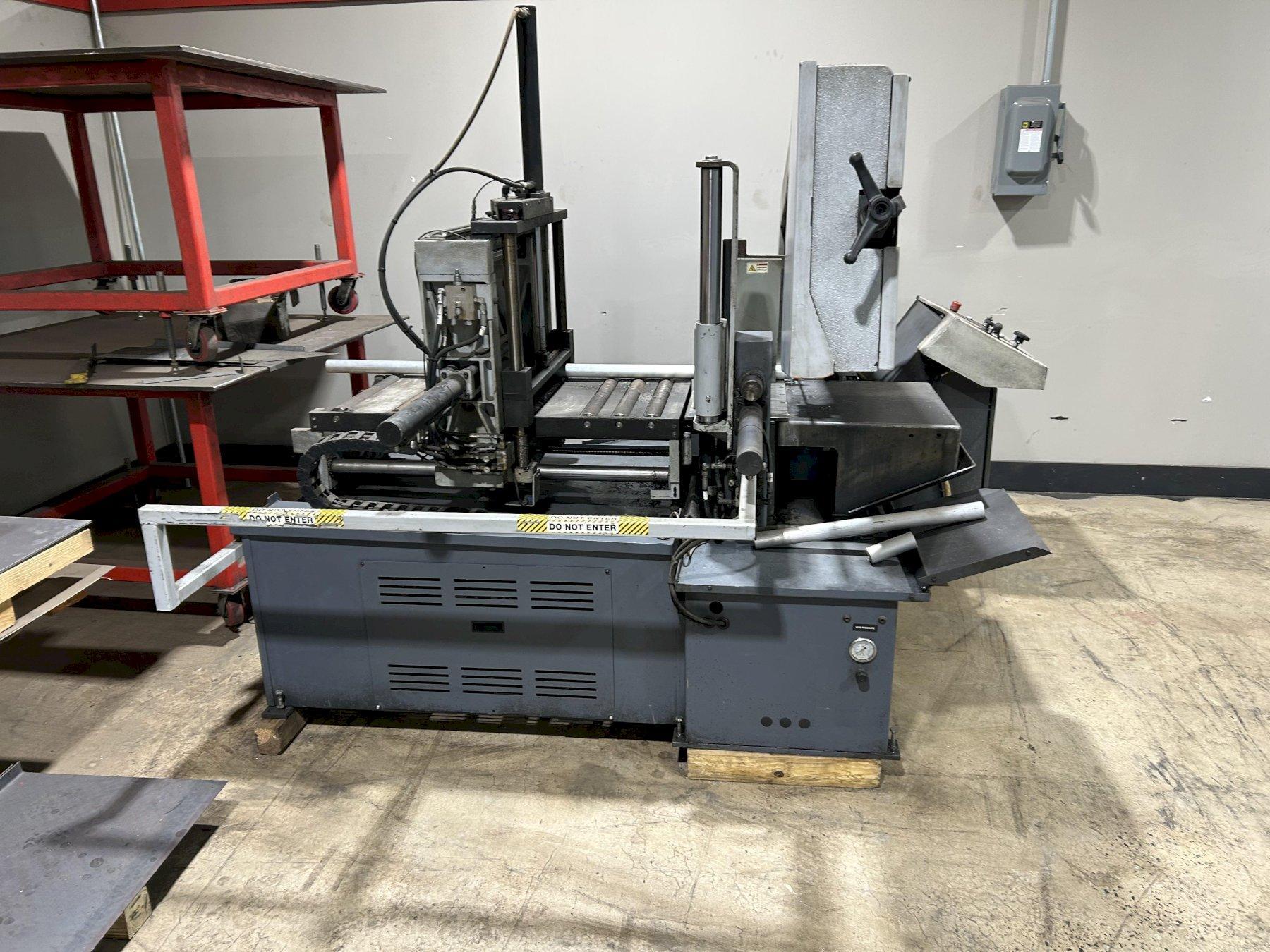

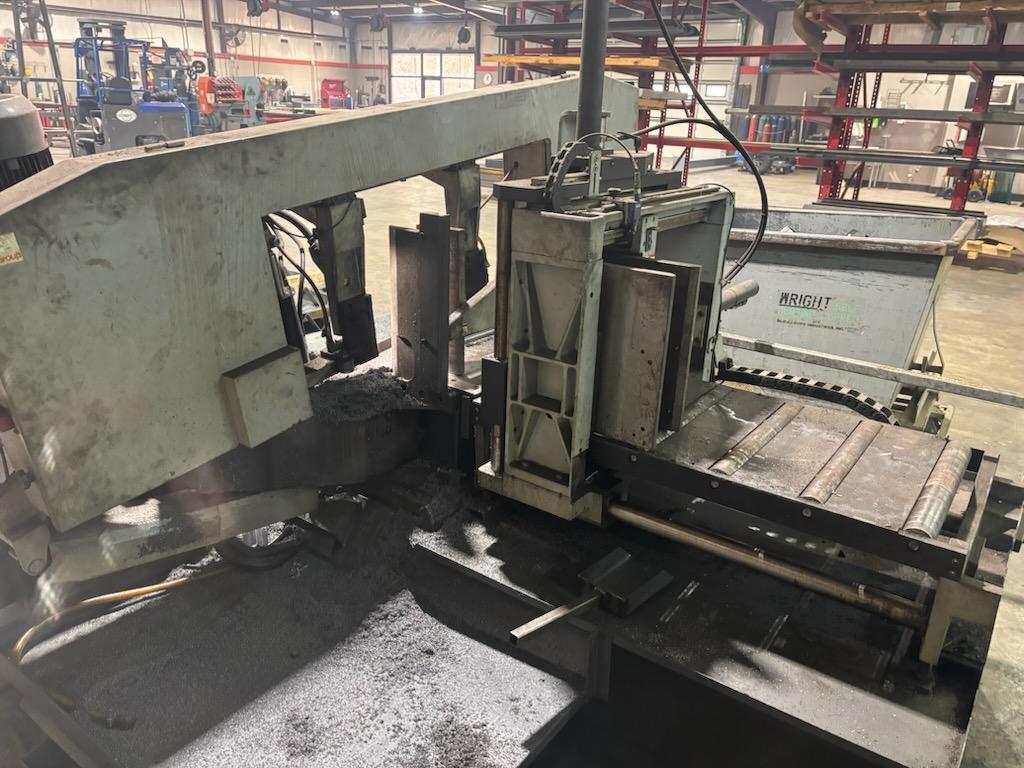

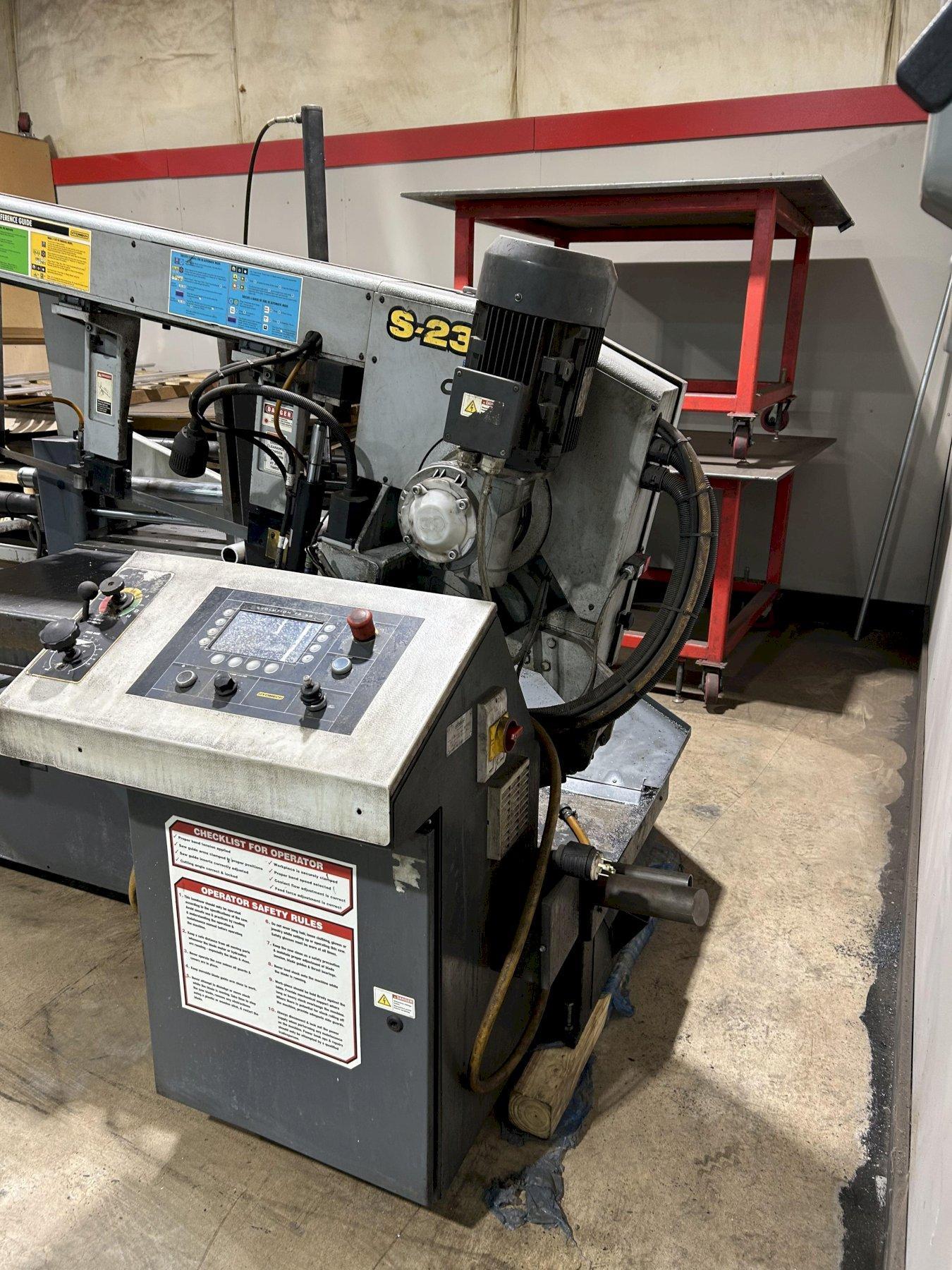

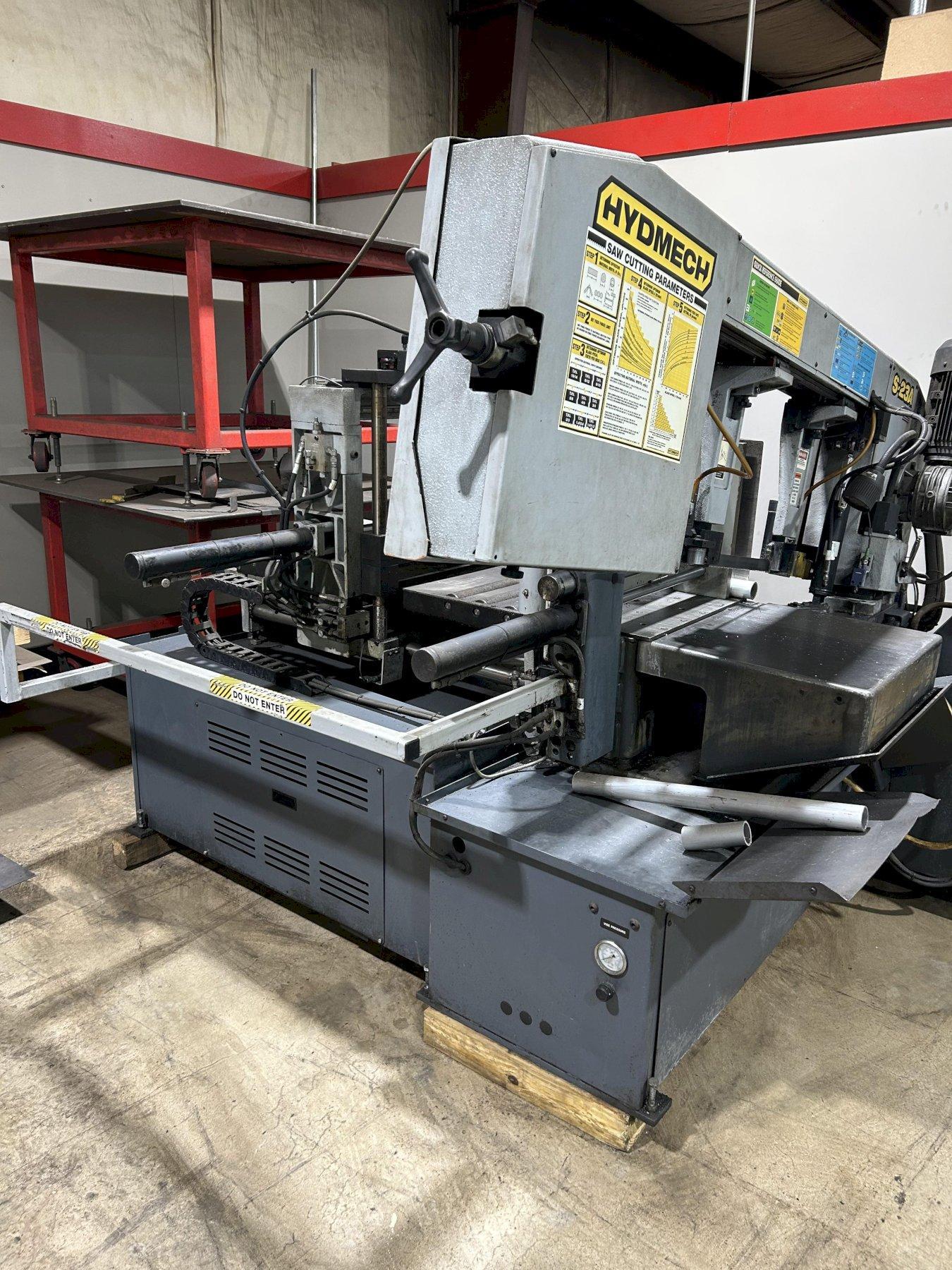

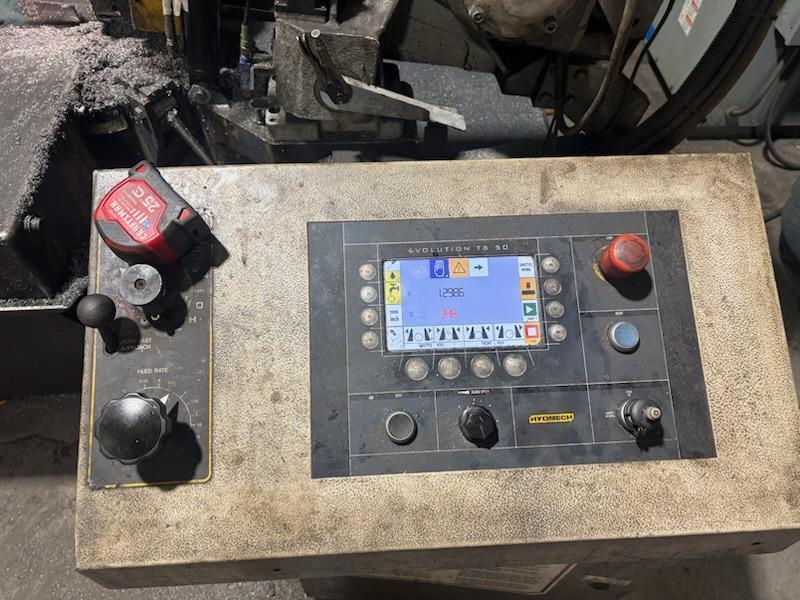

16″ × 18″ HYDMECH S-23A HORIZONTAL BAND SAW

New: 2016

Specifications:
Cutting Capacity:
Rectangular:  16 in High × 18 in Wide
Round:  16 in Diameter
Round at 45°:  13 in Diameter

Blade Size:  15 ft 6 in × 1.25 in
Actual Blade Width (Including Teeth):  1.350 in
Blade Thickness:  0.042 in
Blade Speed:  75–400 SFM
Blade Guides:  Carbide
Blade Wheel Diameter:  19 in

Table Height:  31 in
Shuttle Stroke:  29 in
Maximum Workload:  5,000 lbs

Coolant Pump:  3.5 GPM
Coolant Reservoir:  6 gallons

Machine Weight:  3,500 lbs
Overall Dimensions:  122 in × 105 in × 63 in

Equipped With:
Carbide Blade Guides
Coolant Pump
Coolant Reservoir
