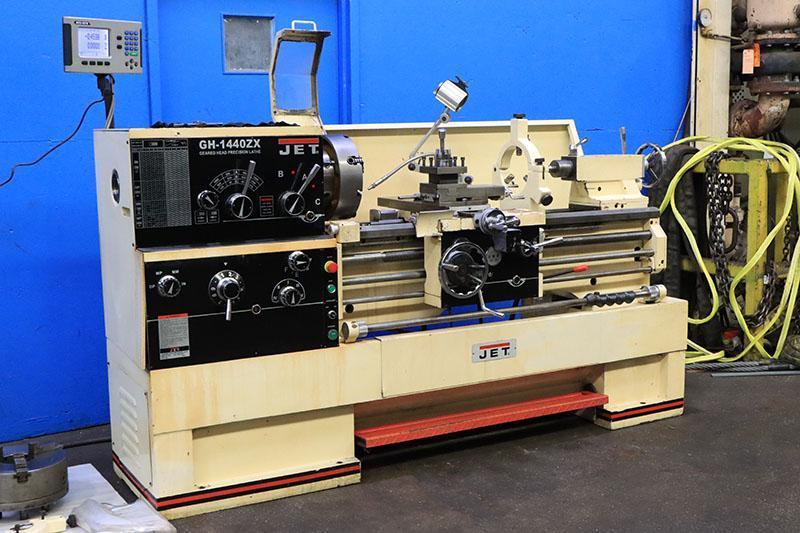

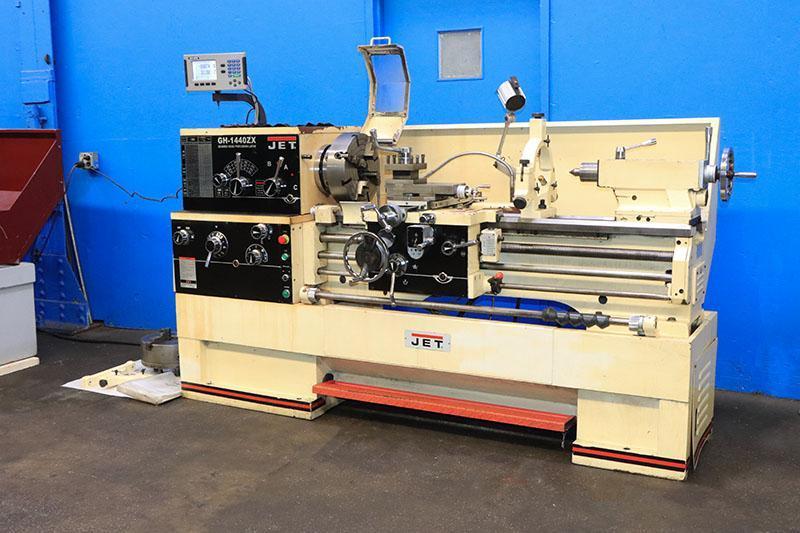

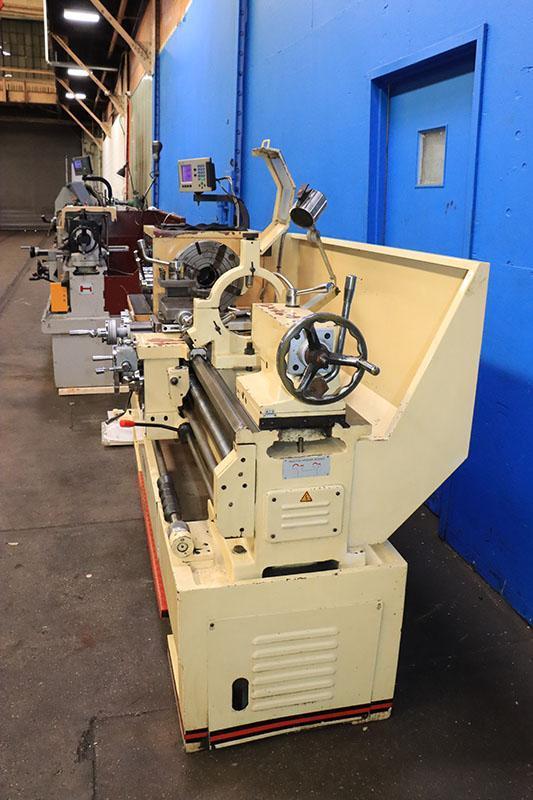

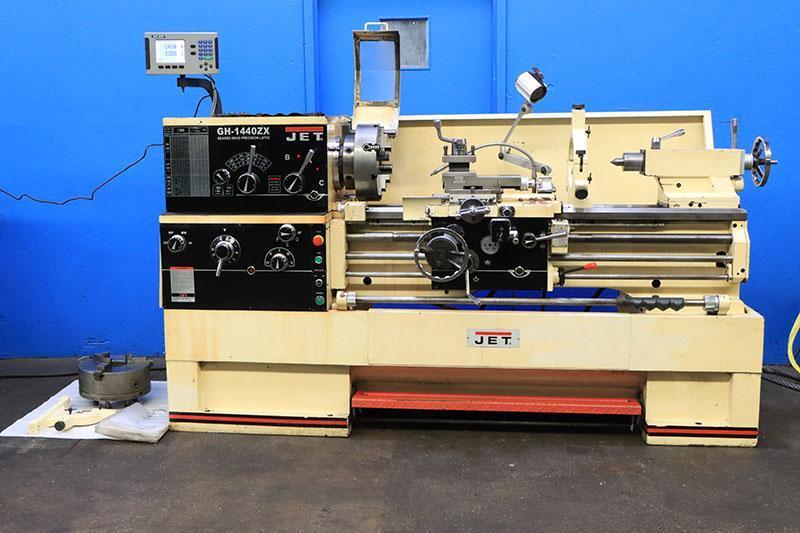

14"/23" X 40" JET MODEL GH-1440 ZX GAP BED ENGINE LATHE

NEW 2012

SPECIFICATIONS:

SWING OVER BED ........................ 14"

SWING OVER GAP ........................ 23-5/8"

SWING OVER CROSS SLIDE ................ 7-5/8"

DISTANCE BETWEEN CENTERS .............. 40"

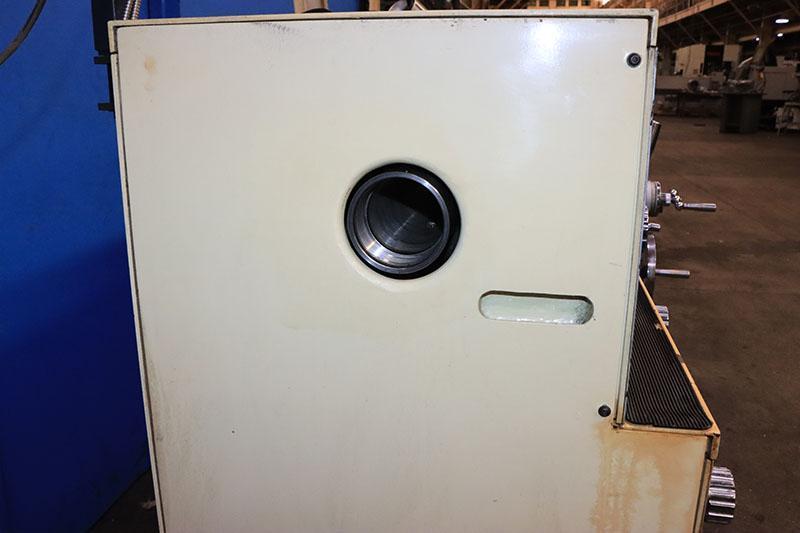

SPINDLE HOLE .......................... 3-1/8"

SPINDLE NOSE, CAMLOCK, SIZE ........... D1-8"

WIDTH OF BED .......................... 13-3/8"

SPINDLE SPEEDS (12) ................... 42 - 1,800 RPM

FEED CHANGES, LONGITUDINAL (122) ...... .0015 - .0913 IPR

FEED CHANGES, CROSS (122) ............. .0006 - .0365 IPR

THREADS, INCH (61) .................... 1-5/8 - 72 T.P.I.

METRIC (24) ........................... .5 - 20 MM

WIDTH OF BED .......................... 13-3/8"

TAILSTOCK SPINDLE CENTER .............. #4 MORSE TAPER

TAILSTOCK SPINDLE TRAVEL .............. 5"

APPROXIMATE DIMENSIONS ................ 96" x 40" x 48"

APPROXIMATE WEIGHT .................... 5,500 LBS.

 EQUIPPED WITH:

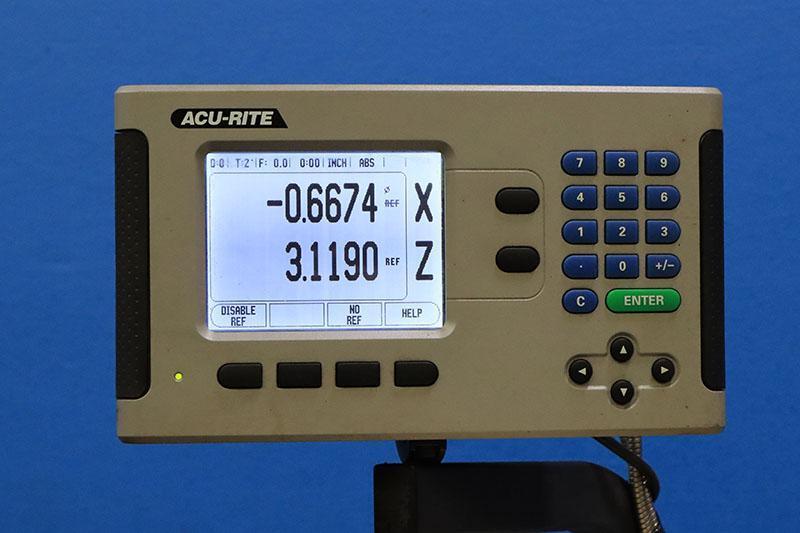

- ACU-RITE MODEL: 200S TWO AXIS DIGITAL READOUT

- REMOVABLE GAP BED

- INCH AND METRIC THREADING CAPABILITY

- HARDENED AND GROUND BED WAYS

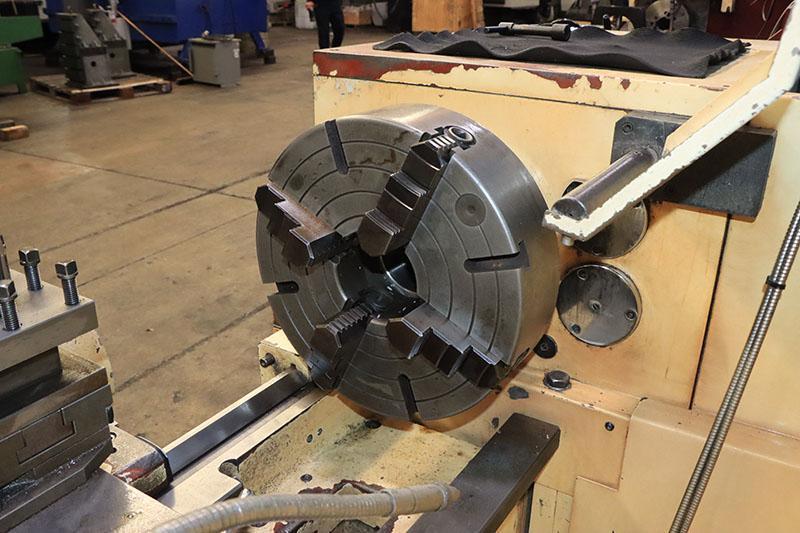

- 12" 4-JAW CHUCK

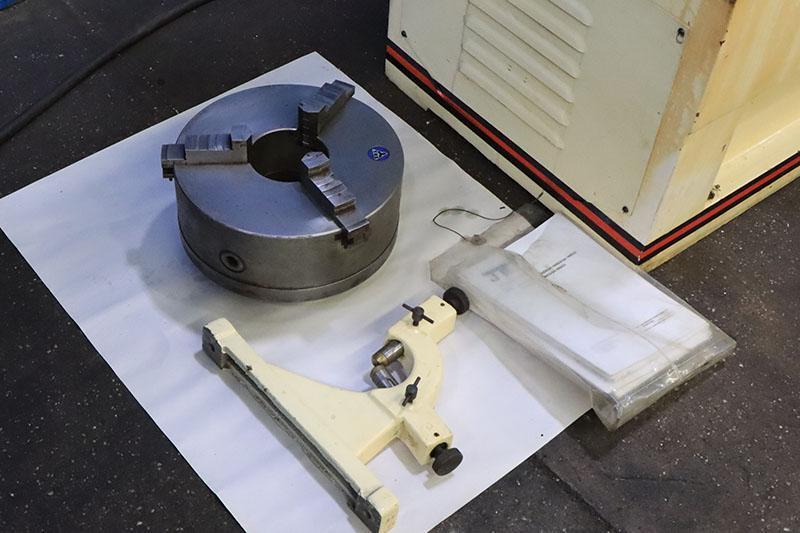

- 12" 3-JAW CHUCK

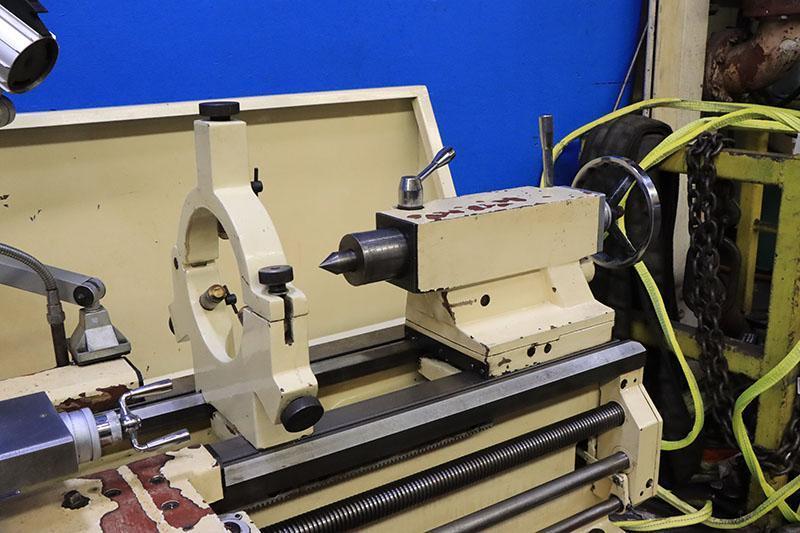

- STEADY REST

- FOLLOW REST

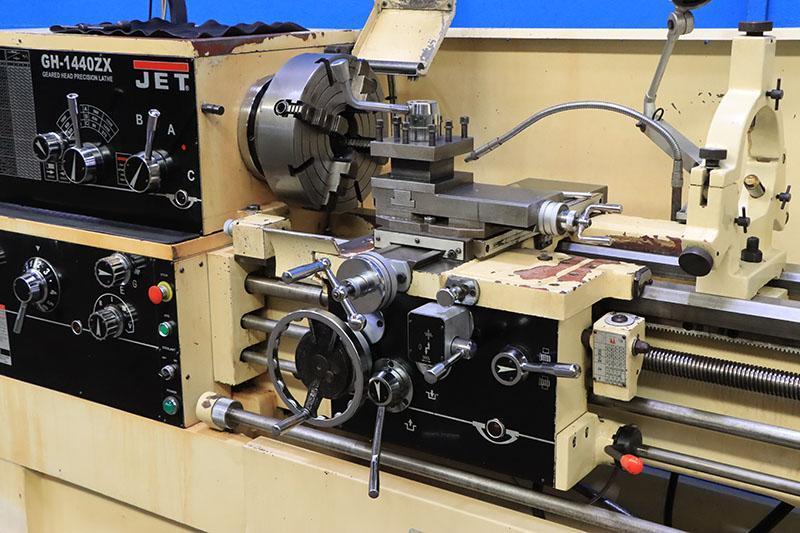

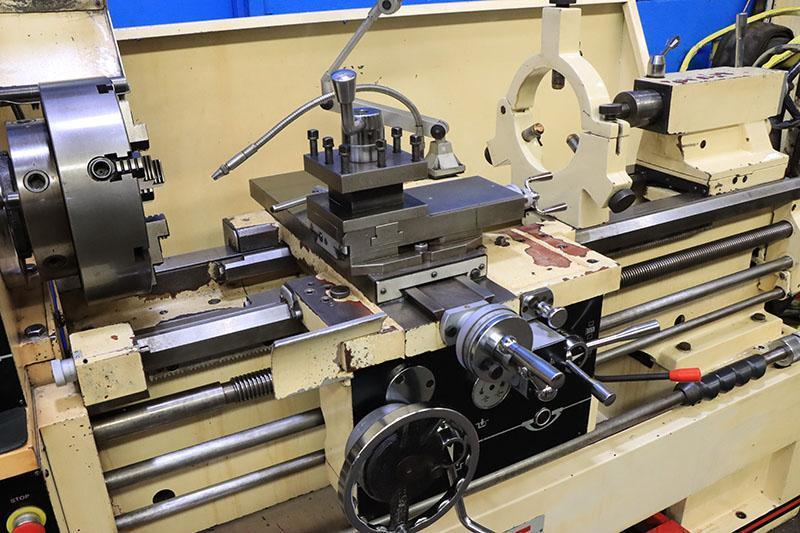

- FOURWAY TURRET TOOLPOST

- THREADING DIAL

- MICROMETER CARRIAGE STOP

- MULITPLE POSITION CARRIAGE STOP

- FOOTBRAKE

- SELF-CONTAINED COOLANT SYSTEM W/FULL LENGTH SPLASH GUARD

- 7-1/2 HORSE POWER SPINDLE DRIVE MOTOR
