Equipped With

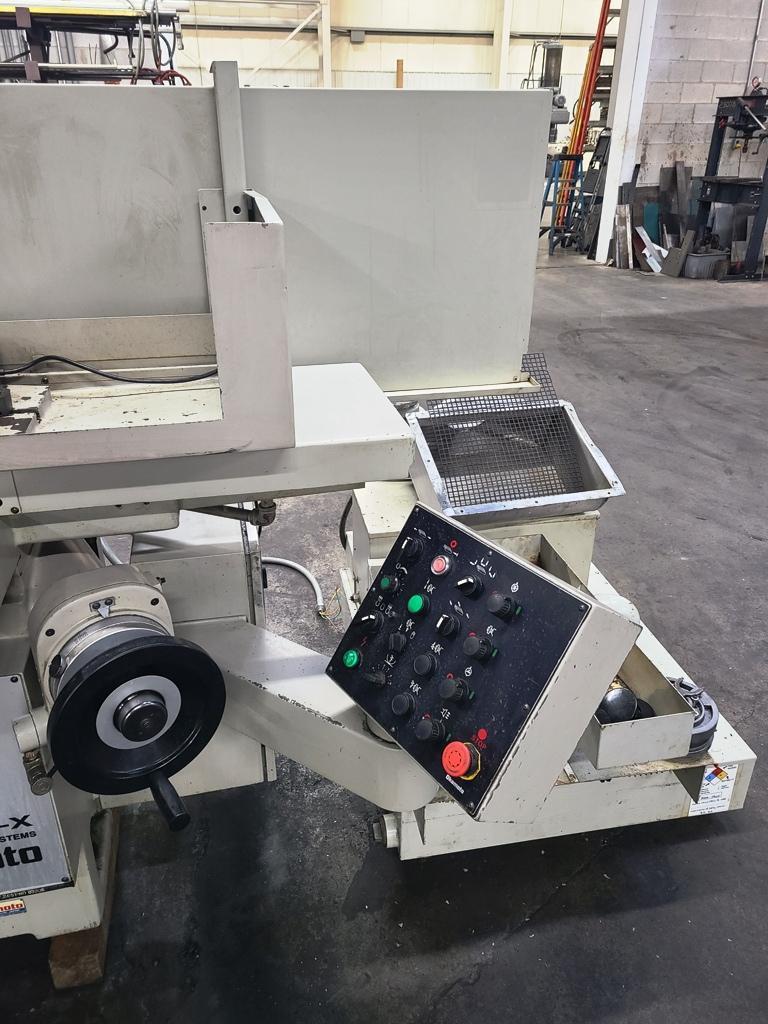

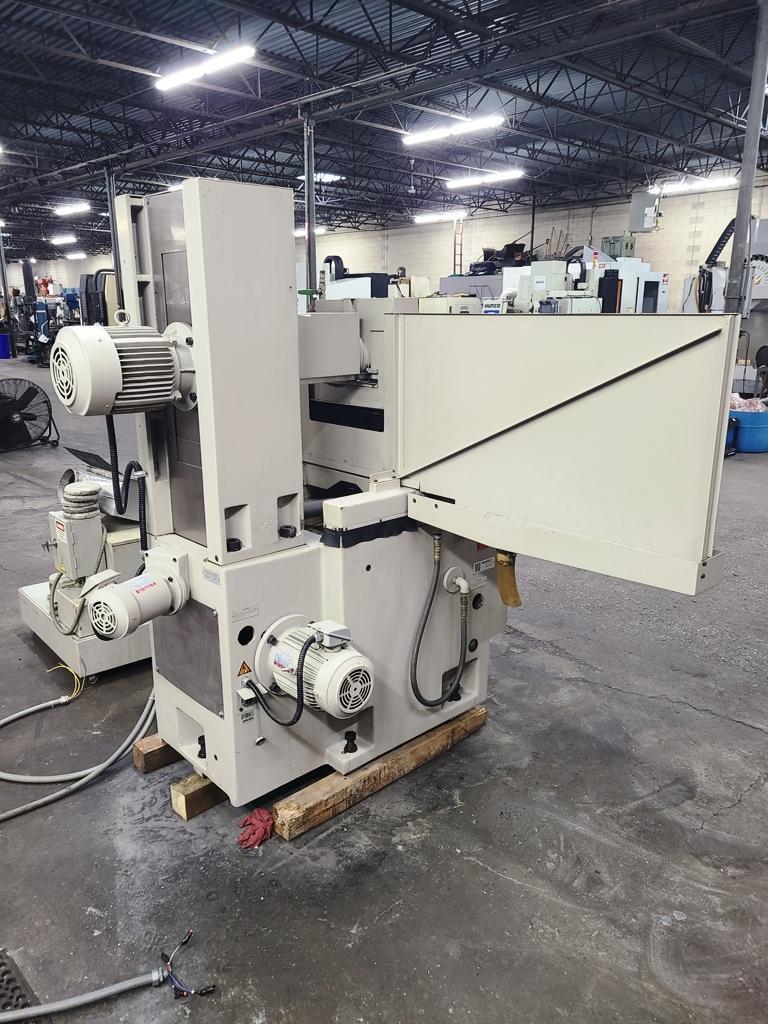

12" x 24" OKAMOTO MODEL ACC-1224ST 3-AXIS SURFACE GRINDER

12" x 24" Electro Magnetic Chuck

Max. Longitudinal Table Travel: 29.5"

Max. Cross Travel: 13.6"

Max. Distance Table Under 12" Dia. Wheel: 13.7"

Hydraulic Table Feed Rate: 1 to 82 FPM

Hydraulic Cross Feed in Increments: .02" to .8"

Hydraulic Continuous Cross Feed: 4 to 40 IPM

Automatic Head Down Feed per Table Stroke: .0001" to .0015"

Rapid Traverse to Wheel Head

Max. Wheel Size: 12" Dia. x 1.5" Wide x 5" Hole

5 HP Spindle Motor, 3 Phase, 60 Cycle, 480 Volts

2 HP Hydraulic Pump Motor, 3 Phase, 60 Cycle, 480 Volts

1/2 HP Wheel Head Traverse Motor, 3 Phase, 60 Cycle, 480 Volts

Wheel Hub

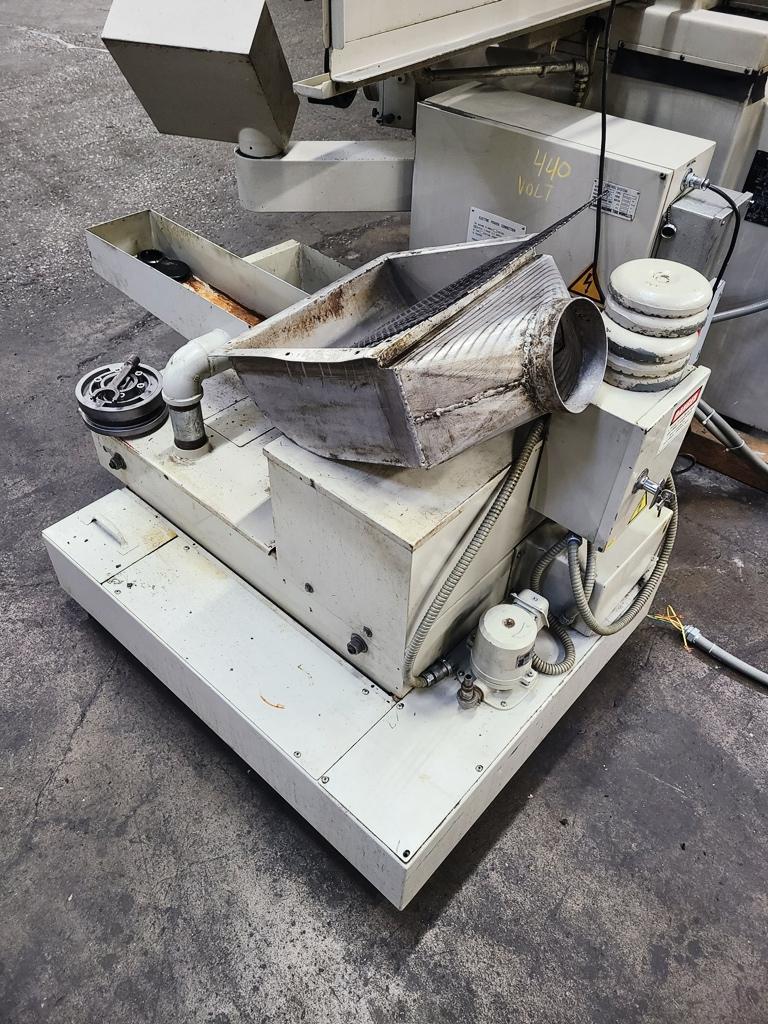

Coolant System with Paper Filtration

Overall Machine Dimensions: 100" L-R x 76" F-B x 72" H x 4,600 Lbs.

Coolant System Dimensions: 44" L x 28" W x 32" H
