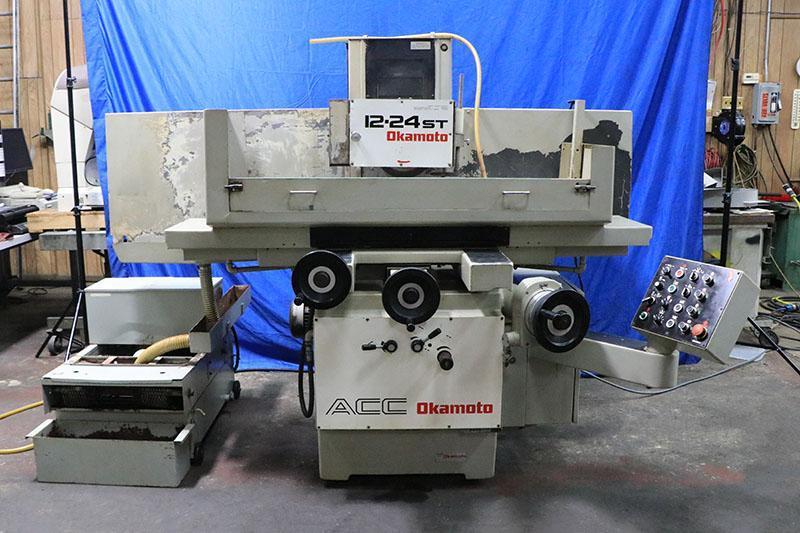

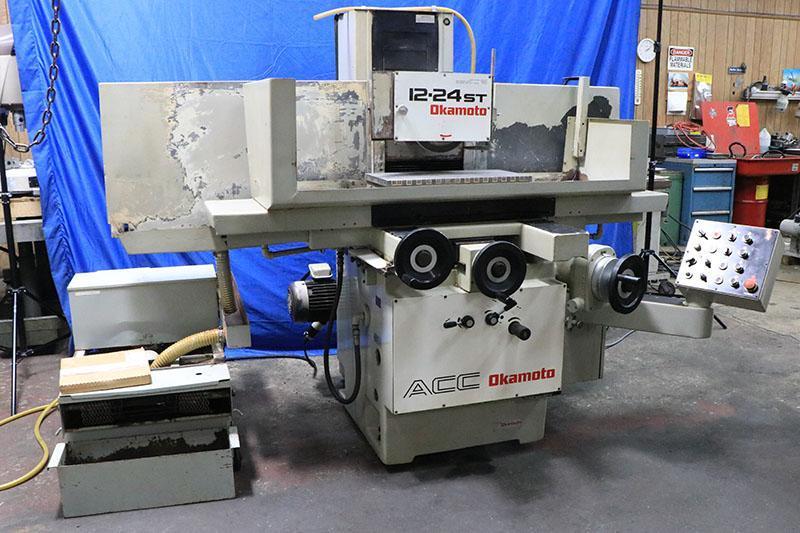

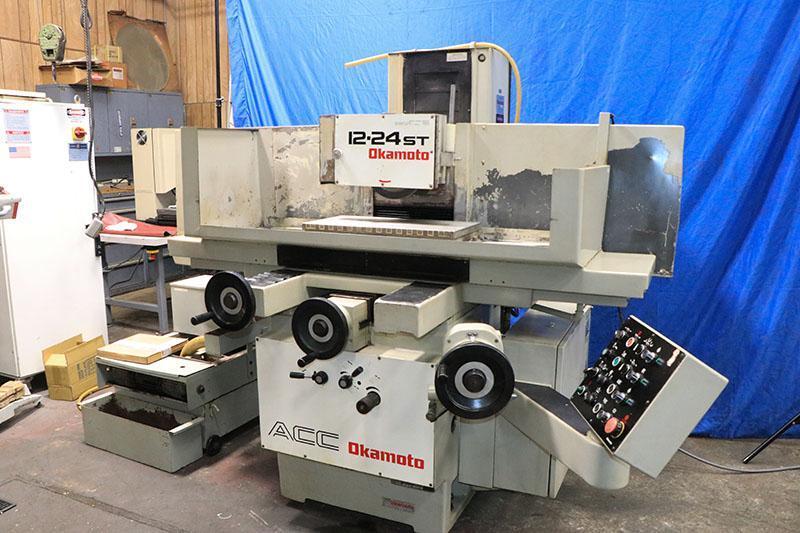

MAXIMUM GRINDING LENGTH:......... 24"

MAXIMUM GRINDING WIDTH:.......... 12"

MAXIMUM HEIGHT UNDER 12" WHEEL:.. 13.7"

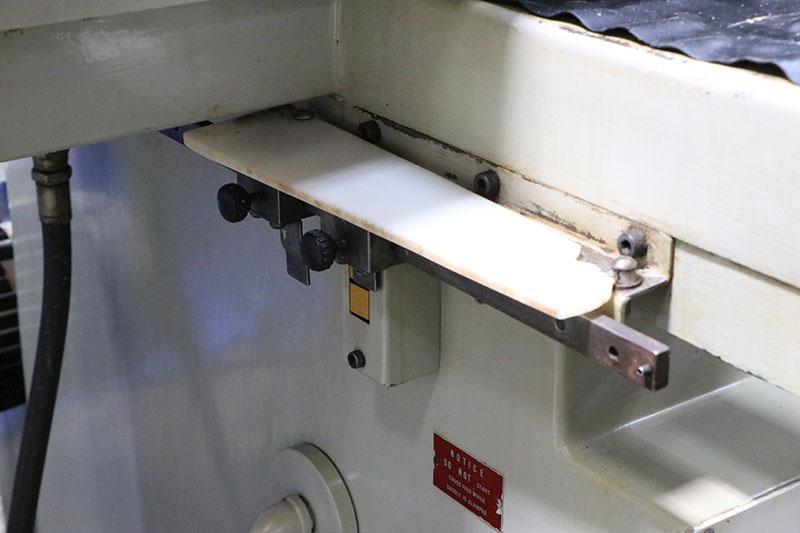

MAXIMUM LONGITUDINAL MOVEMENT:... 29.5"

MAXIMUM CROSS MOVEMENT:.......... 13.6"

FEEDS:

LONGITUDINAL HYDRAULIC FEED:..... 1' TO 82' FPM

CROSS FEED, HYD. INTERMITTENT: .. 0.02" -.8"

HYDRAULIC CONTINUOUS:............ 0.4" 40" IPM

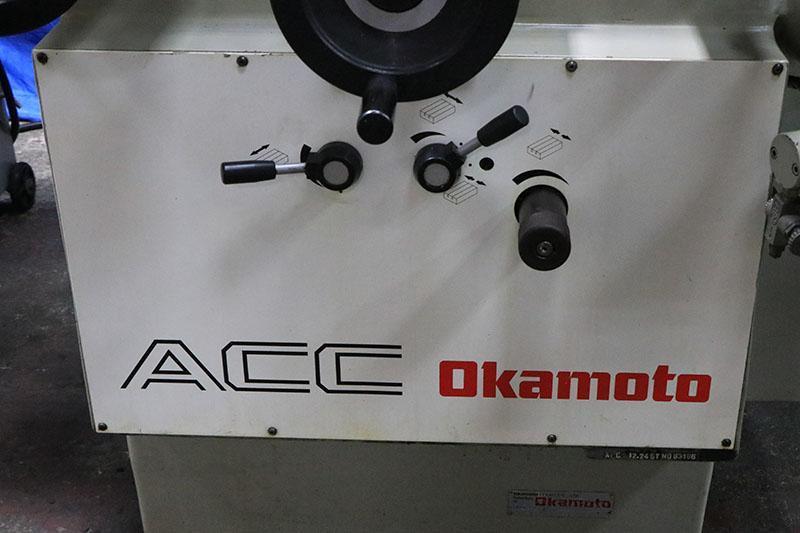

HAND FEED/REVOLUTION:............ 0.25"

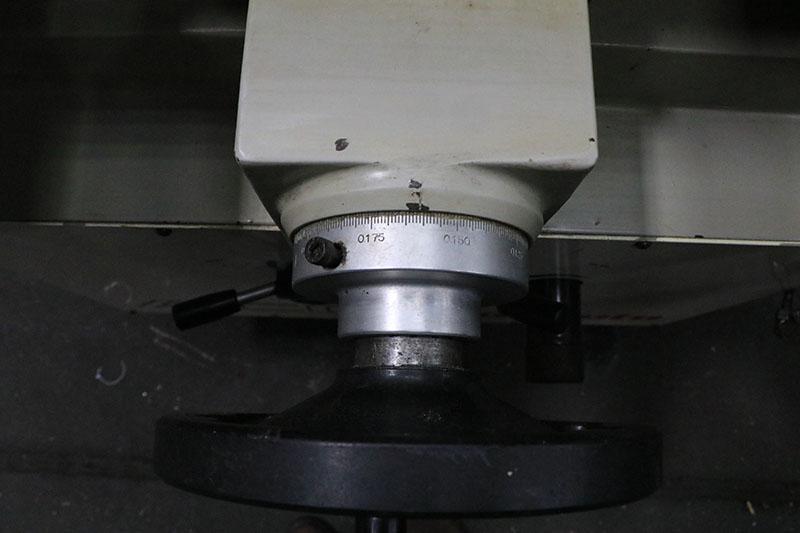

GRADUATION OF WHEEL:............. 0.001"

VERTICAL MOVEMENT OF WHEELHEAD:

AUTO FEED/TABLE STROKE:........ 0.0001" - 0.0005"

AUTO FEED/SADDLE REVERSAL:..... 0.0001" - 0.0015"

HAND FEED/REVOLUTION:............ 0.05"

GRADUATION OF HANDWHEEL:......... 0.0001"

RAPID FEEDRATE:.................. 19" IPM

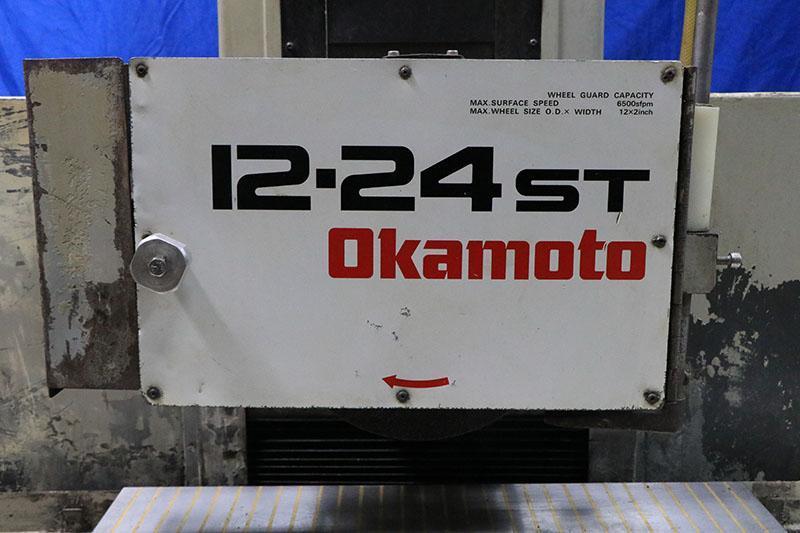

GRINDING WHEEL:............... 12" X 1- 1/2" X 5"

SPINDLE MOTOR:................... 5 HP

HYDRAULIC PUMP MOTOR:............ 3 HP

VERTICAL RAPID FEED MOTOR:....... 0.5 HP

DIMENSIONS:................ 103"R-L x 74"F-B x 74"H

APPROX. MACHINE WEIGHT:.......... 3,900 LBS.

  EQUIPPED WITH:

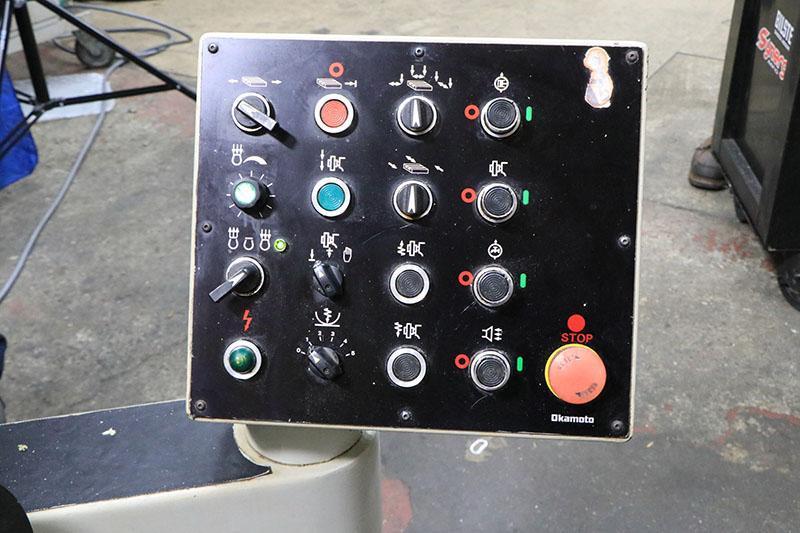

CENTRALIZED OPERATOR CONTROLS

AUTO INCREMENTAL DOWNFEED, SURFACE & PLUNGE MODES

AUTOMATIC SPARKOUT OF WHEEL UP TO 5 PASSES

POWER ELEVATION

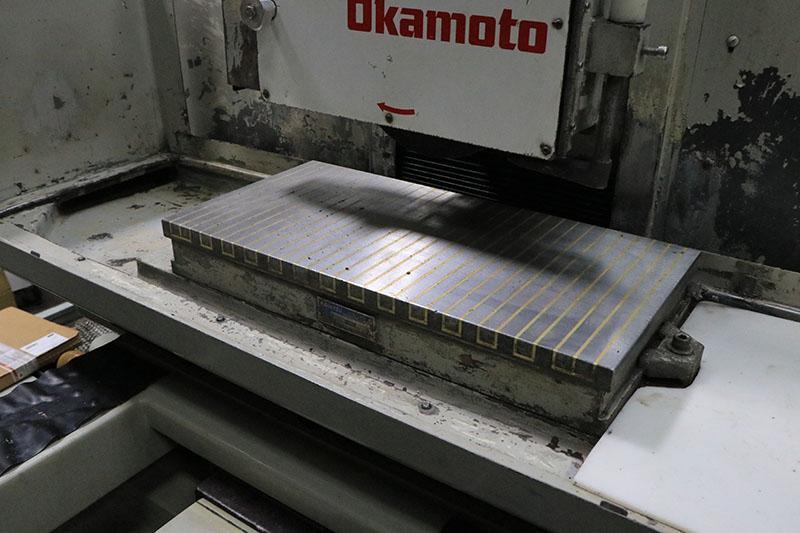

12" X 24" ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER ON THE CONSOLE CONTROL

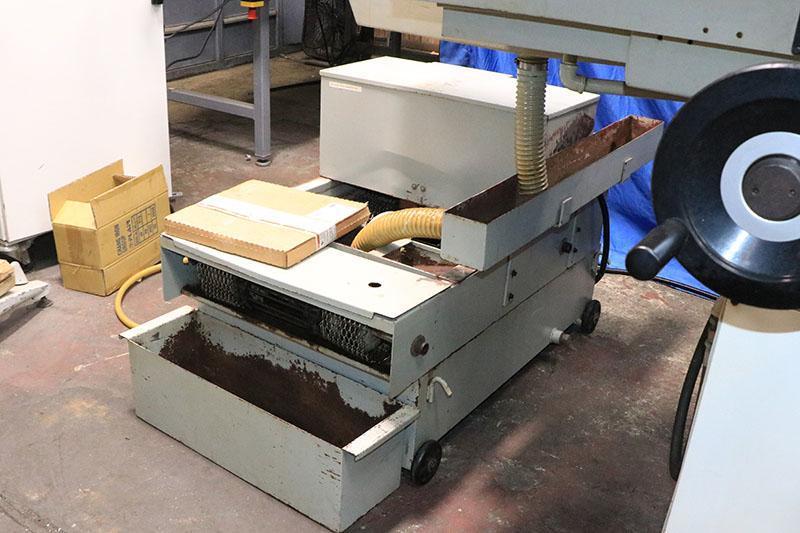

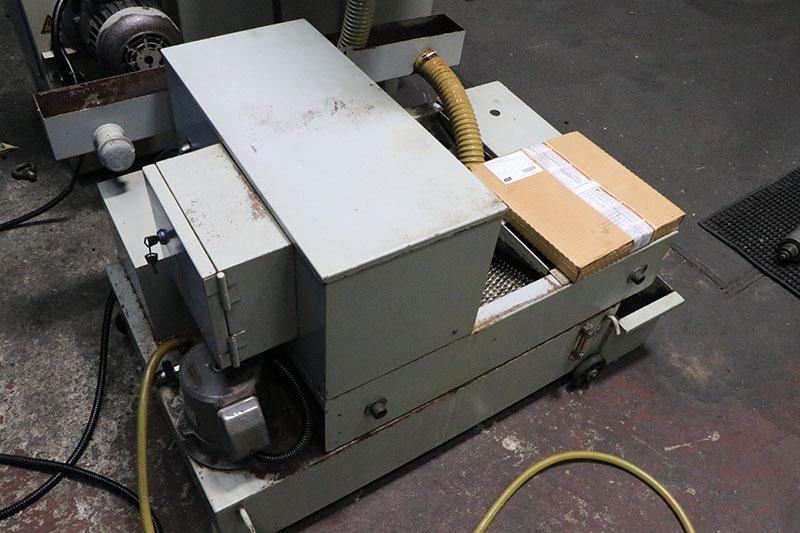

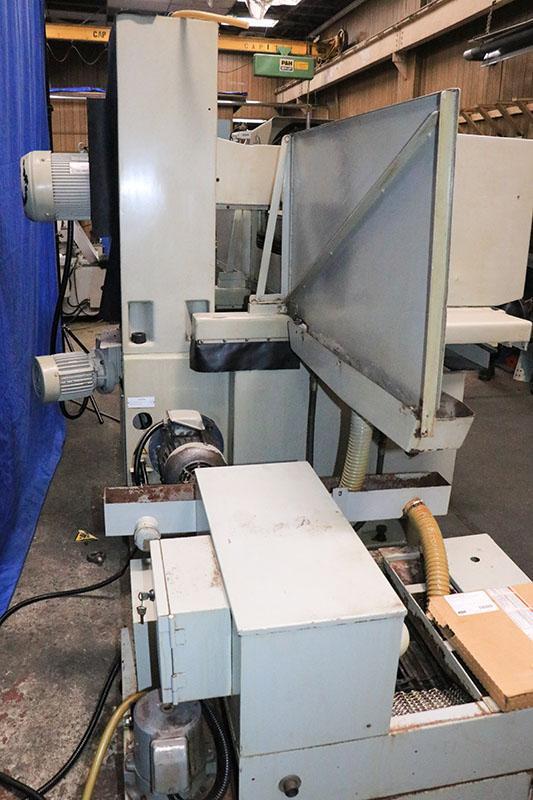

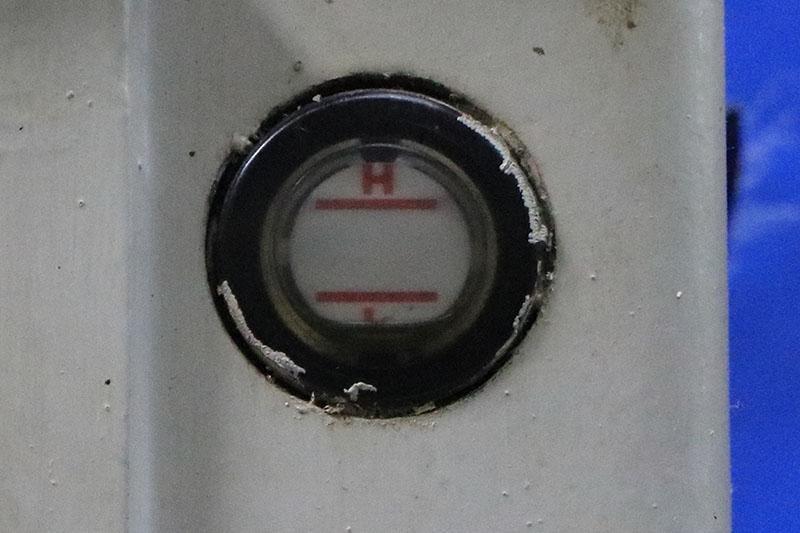

COOLANT SYSTEM WITH PAPER FILTRATION

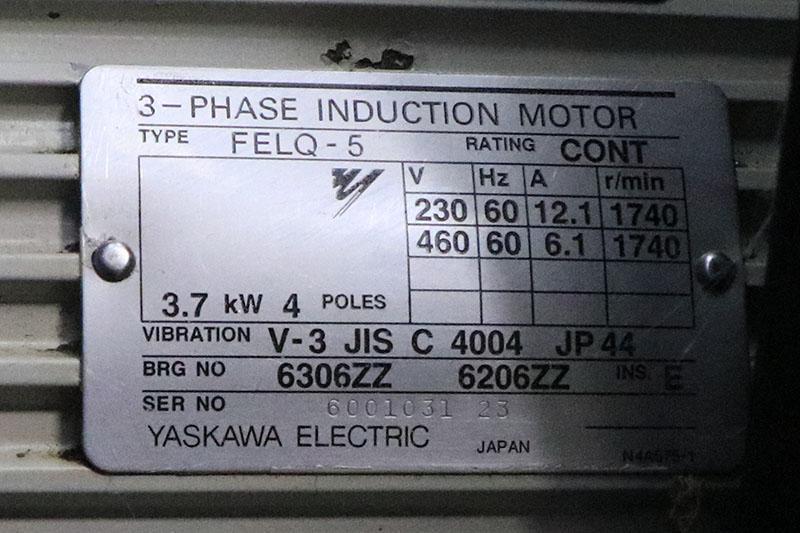

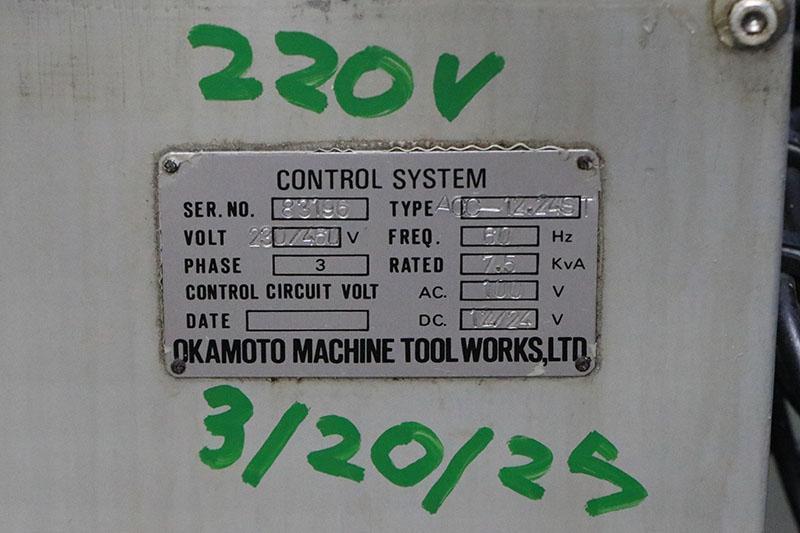

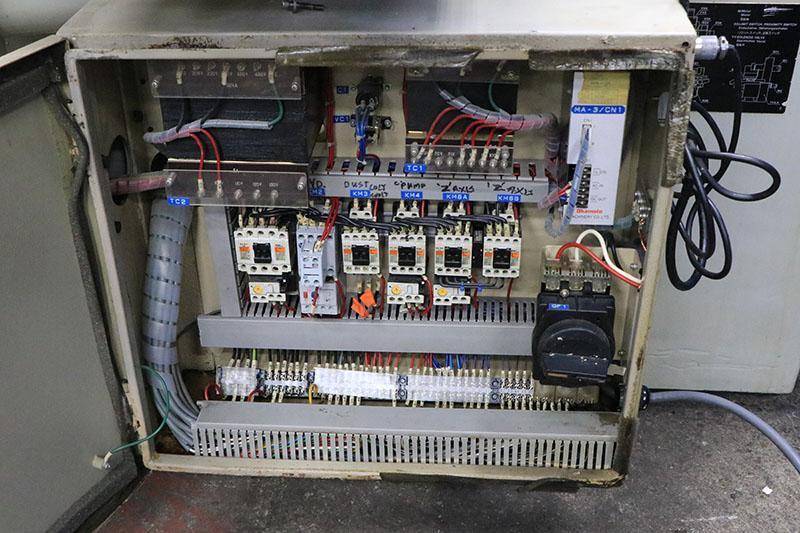

5 H.P. SPINDLE MOTOR/3/60/230-460 VOLTS
