Equipped With

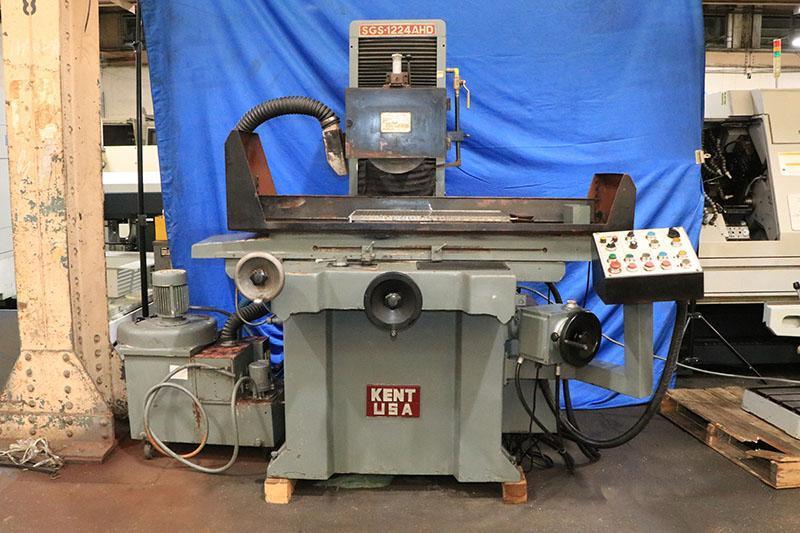

12" X 24" KENT MODEL SGS-1224AHD HYDRAULIC SURFACE GRINDER
New 1994

MAX. GRINDING CAPACITY ............... 12" X 24"

DIST. FROM SPINDLE CENTER TO TABLE ... 23- 1/2"

LONGITUDINAL TABLE TRAVEL ............ 28"

CROSS TRAVEL ......................... 13- 1/2"

VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM

AUTOMATIC CROSSFEED INCREMENT ........ 0 TO 5/8"

RAPID CROSS TRAVERSE RATE ............ 35" IPM

AUTO INCREMENTAL DOWNFEED ............ 0.001" TO .0001"

DOWNFEED HANDWHEEL PER GRADUATION .... 0.0005"

PER REVOLUTION ....................... 0.1"

CROSSFEED HANDWHEEL PER GRADUATION ... 0.001"

PER REVOLUTION ............. ......... 0.2"

SPINDLE MOTOR ........................ 5 H.P.

STANDARD GRINDING WHEEL .............. 14"D x 1.5" x 5"

APPROX. WEIGHT ....................... 4,180 LBS

EQUIPPED WITH:

AUTO INCREMENTAL DOWNFEED (SURFACE& PLUNGE)

POWER RAPID WHEELHEAD POSITIONING

HYDRAULIC TABLE TRAVERSE

POWER CROSSFEED

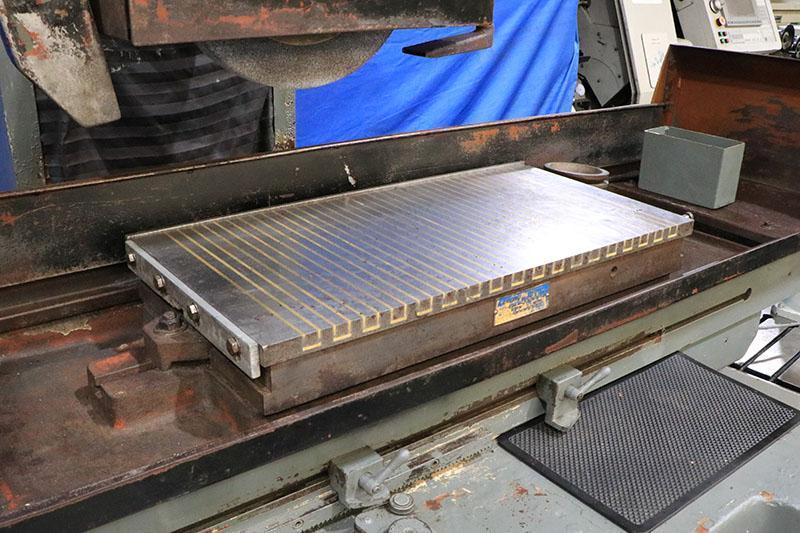

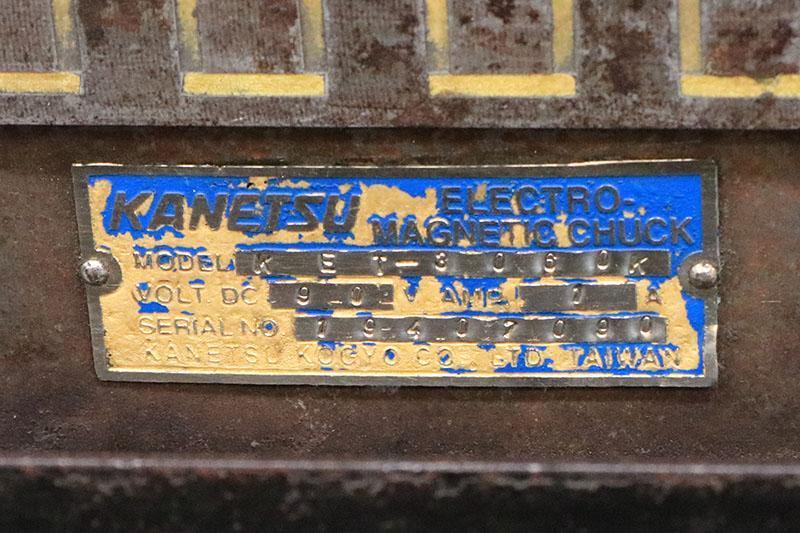

12" X 24" KANETSU STD. DIVISION, CROSS POLE,

 ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER CONTROL

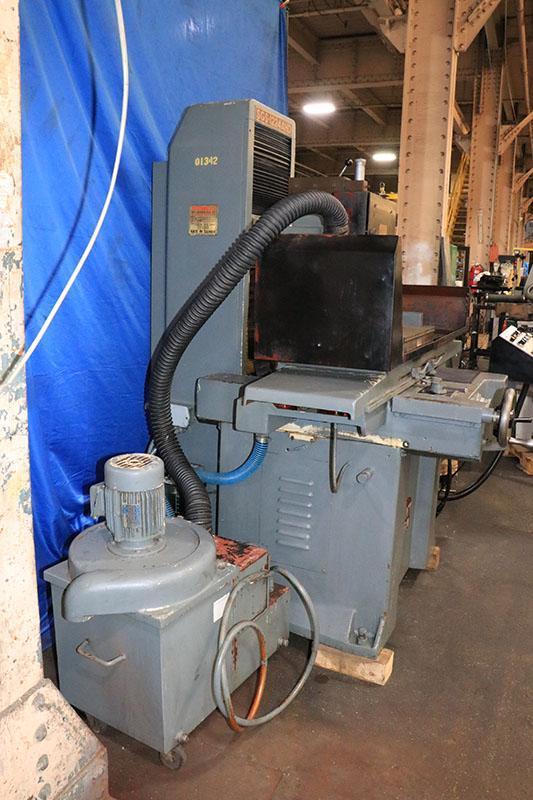

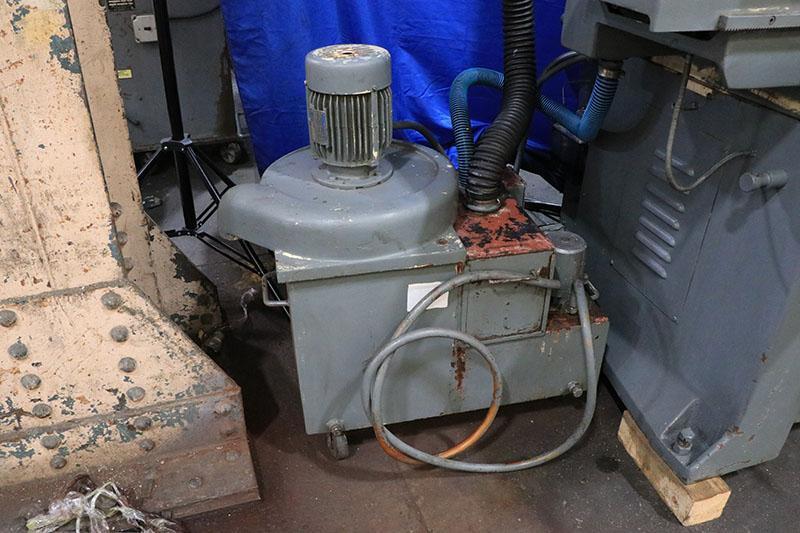

COMBINATION COOLANT SYSTEM & DUST COLLECTOR

MEEHANITE CASTING

VEE & FLAT TURCITE WAYS FOR SMOOTH LONGITUDINAL TRAVEL

CENTRALIZED LUBRICATION SYSTEM

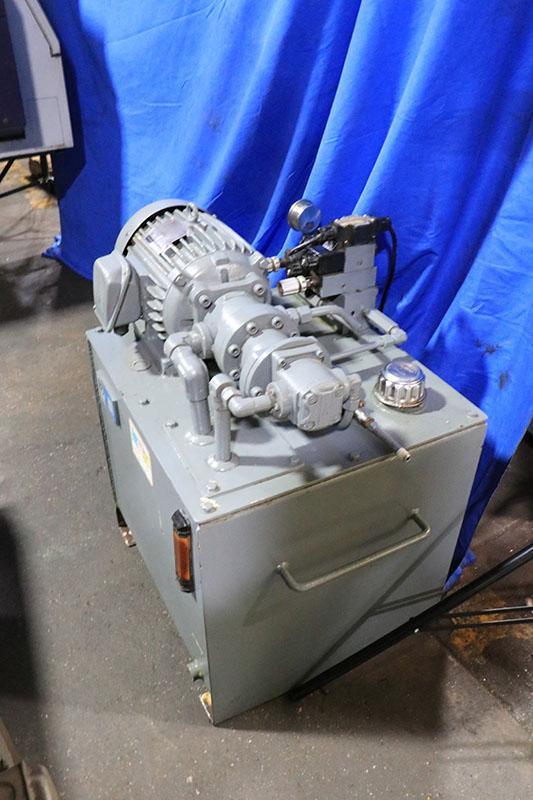

EXTERNAL HYDRAULIC SYSTEM

MOTORS ARE 3/60/220-440 VOLTS

MACHINE IS WIRED PRESENTLY FOR 3/60/440 VOLTS
