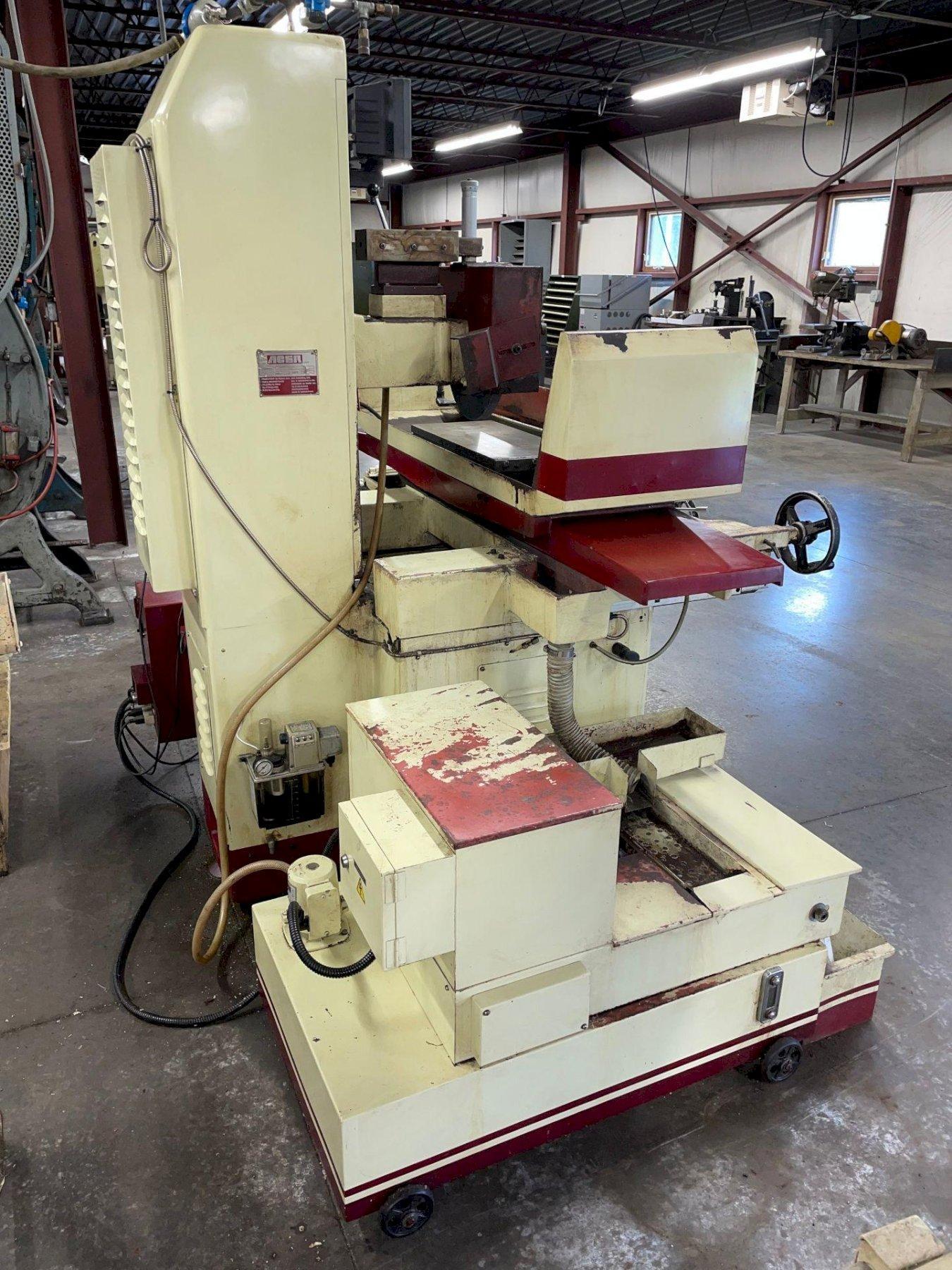

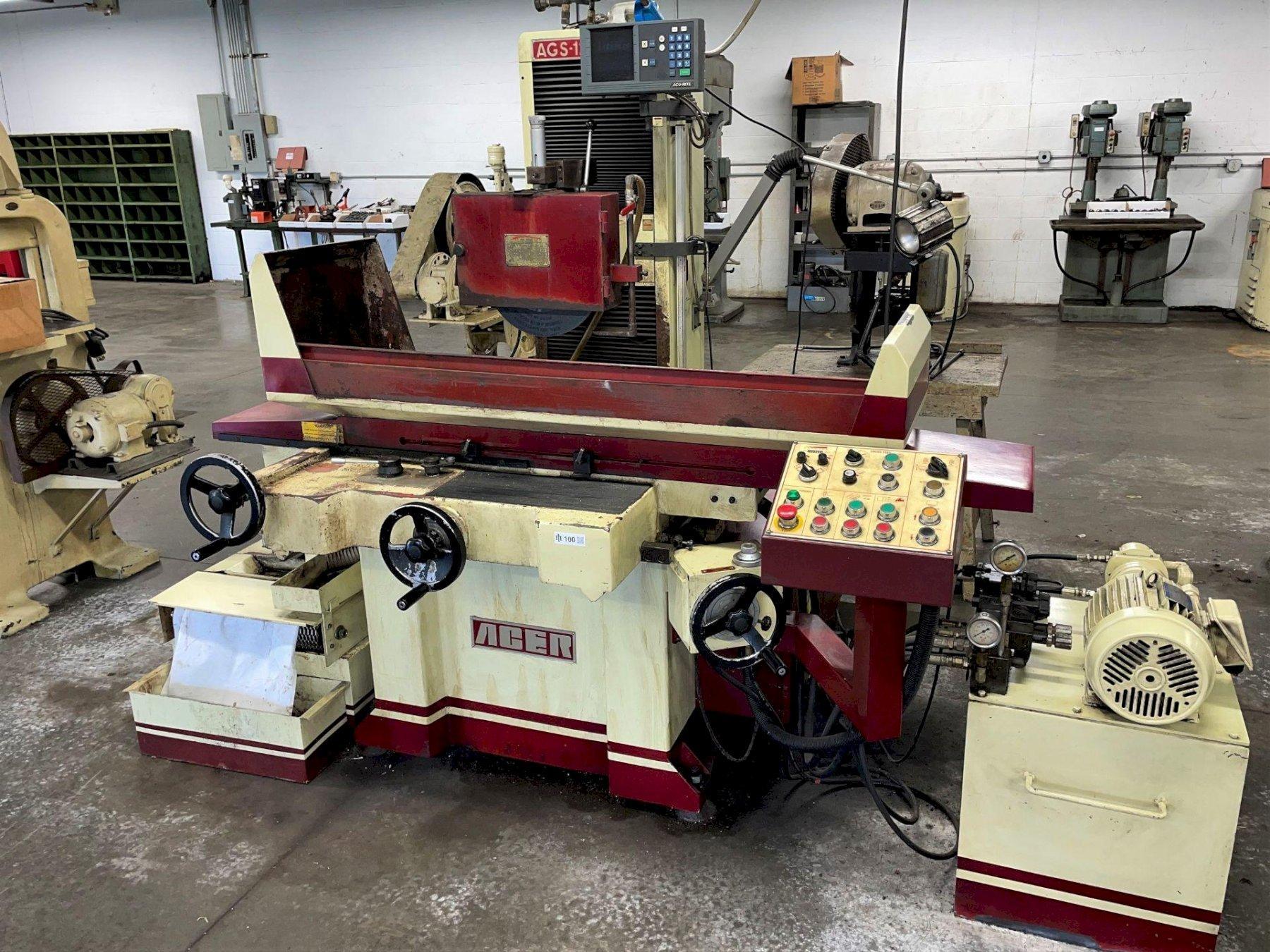

12" X 24" ACER MODEL AGS-1224AHD HYDRAULIC SURFACE GRINDER
New 1999

MAX. SURFACE GROUND ........................ 12" X 24"

DIST. FROM SPINDLE CENTER TO TABLE ......... 23- 1/2"

VARIABLE TABLE SPEED, HYDRAULIC ......       16' TO 80' FPM

MAX. TABLE TRAVEL .......................... 26.5"

AUTOMATIC CROSSFEED INCREMENT .............. 0" TO 1"

MAX. CROSSFEED TRAVEL (AUTO FEED) .......... 14"

PER REVOLUTION ............................. 0.1"

CROSSFEED HANDWHEEL PER GRADUATION ......... 0.001"

PER REVOLUTION ............................. 0.2"

AUTO INCREMENTAL DOWNFEED .................. 0.001" TO .0001"

VERTICAL GRADUATION ........................ 0.0005"

VERTICAL REVOLUTION ........................ 0.1"

MICRO ADJUSTMENT FOR VERTICAL HANDWHEEL .... 0.0001" GRAD.

SPINDLE MOTOR .............................. 5 H.P.

STANDARD GRINDING WHEEL .................... 14"D x 1- 1/4" x 5"

SPINDLE SPEED .............................. 1,750 RPM

MAXIMUM TABLE LOAD CAP. INCLUDING CHUCK ..   1,000 LBS.

APPROX. WEIGHT ............................. 4,180 LBS

FLOOR SPACE REQUIRED .................. 84"L-R x 67"W x 89"H

  EQUIPPED WITH:

AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)

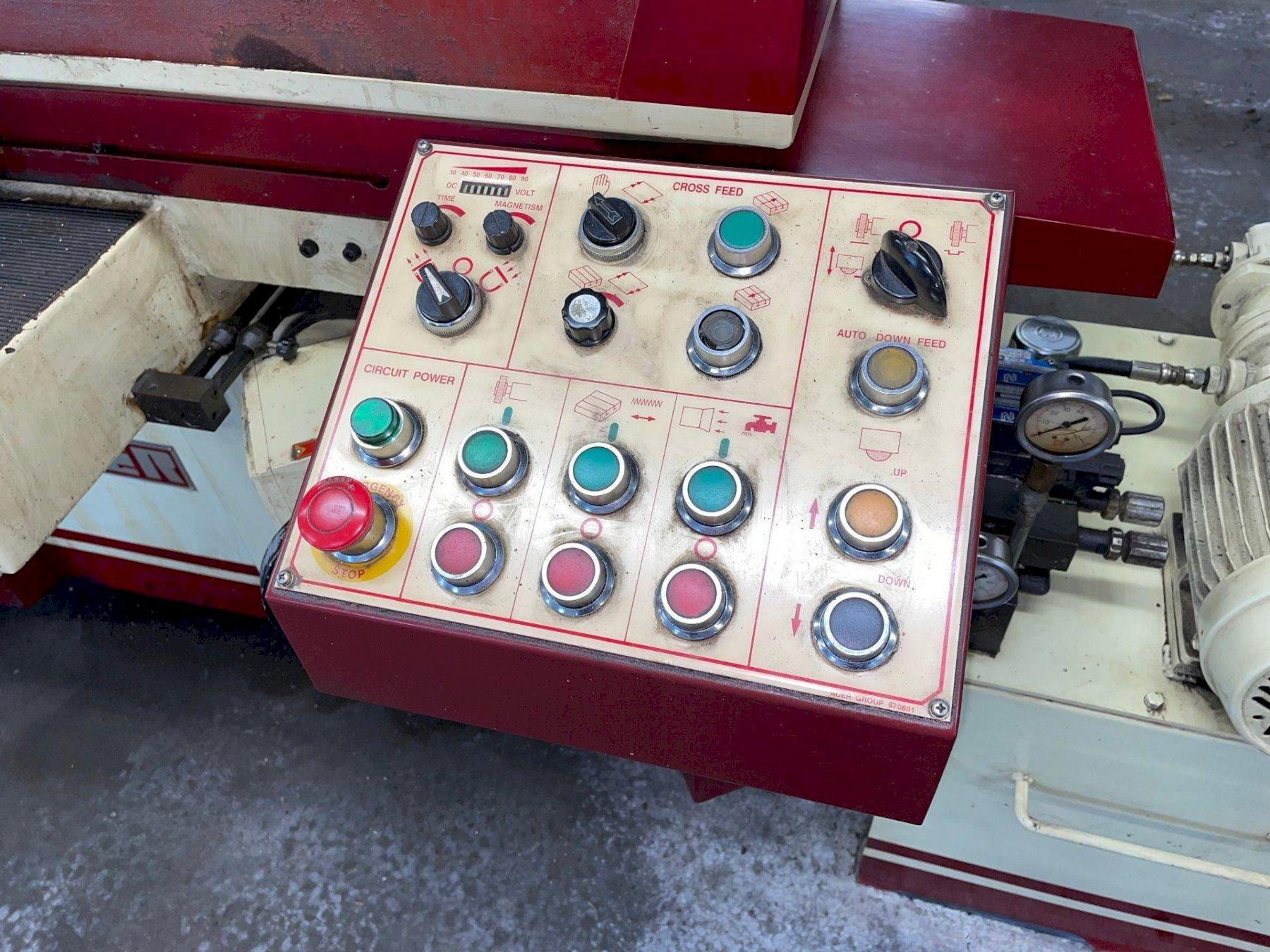

POWER RAPID WHEELHEAD POSITIONING BY PUSHBUTTON ON CONSOLE

HYDRAULICALLY POWERED LONGITUDINAL FEED

ELECTRONIC POWER CROSSFEED

TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)

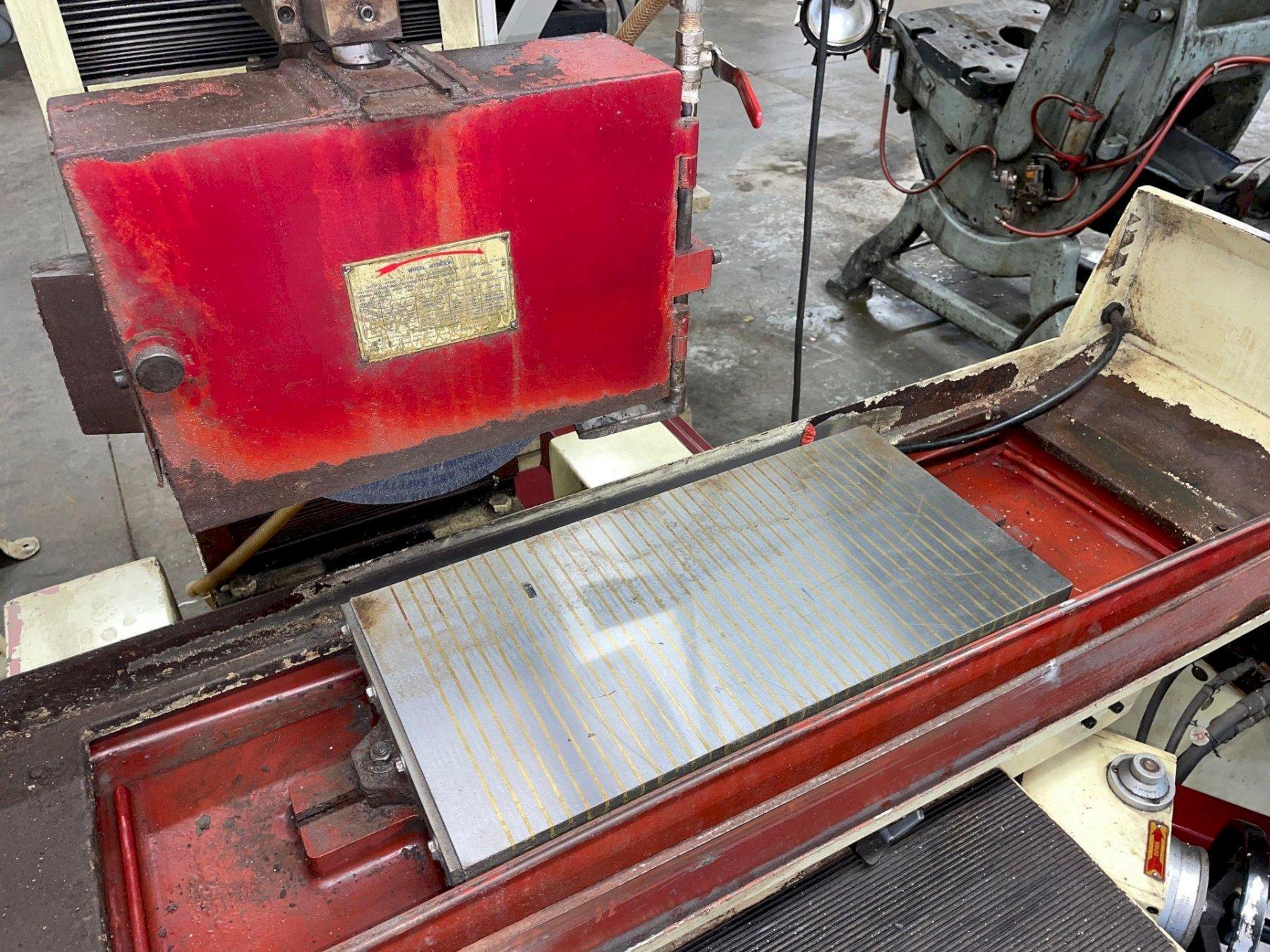

12" x 24" ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD NEUTROFIER CONTROL, ON THE MACHINE CONSOLE CONTROL

COOLANT SYSTEM WITH BOTH PAPER FILTRATION

OVER-THE-WHEEL DRESSER

EXTRA GRINDING WHEELS

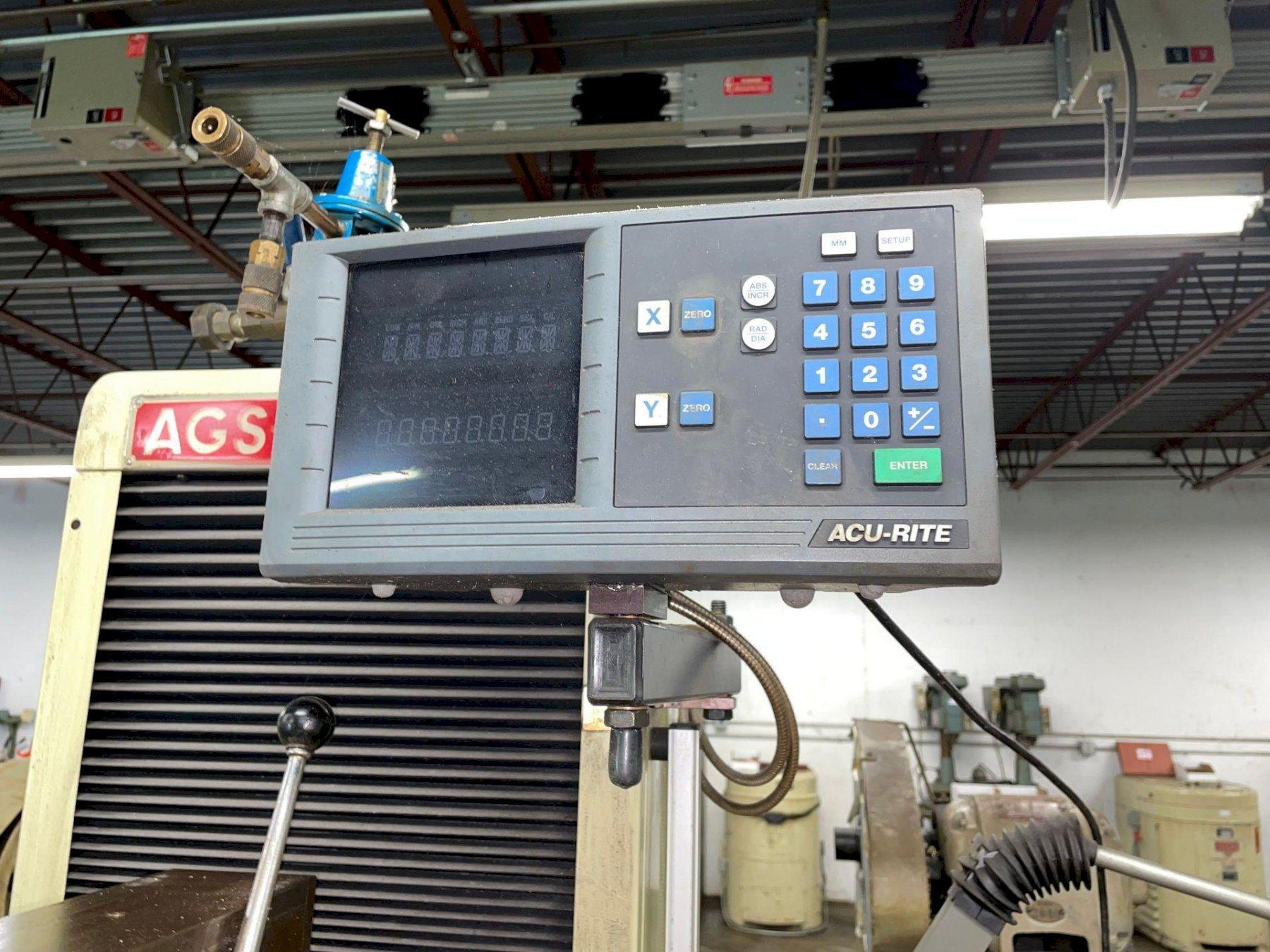

"ACU-RITE" 2-AXIS DRO

MEEHANITE CASTING

AUTO LUBE SYSTEM

EXTERNAL HYDRAULIC SYSTEM

2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK

5 HP 3/60/230-460 VOLT SPINDLE MOTOR
