10" X 20" CHEVALIER MODEL FSG-1020AD SURFACE GRINDER

NEW 1993

MAX. GRINDING CAPACITY 10" X 20"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC 22- 7/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL 24- 3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC 10"
MAX. CROSSFEED TRAVEL, MANUAL 11 3/4"
DIST. FROM SPINDLE CENTER TO TABLE 21"
VARIABLE TABLE SPEED, HYDRAULIC 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT 0.02" to 1.0"
CROSSFEED HANDWHEEL, PER GRADUATION 0.0025"
PER REVOLUTION 0.25"
MICROFEED, PER REVOLUTION 0.005"
PER GRADUATION 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED steps 0.00005" TO 0.002"
AUTO DOWNFEED DIAL PER GRADUATION 0.0005"
PER REVOLUTION 0.05"
MICROFEED, per Revolution 0.005"
Per Graduation .00005"
SPINDLE MOTOR 3 HP
GRINDING WHEEL 12" DIA. x 1 1/4" x 3" bore
Dimensions 78" X 64" X 75"H
APPROX. WEIGHT 4,000 LBS.

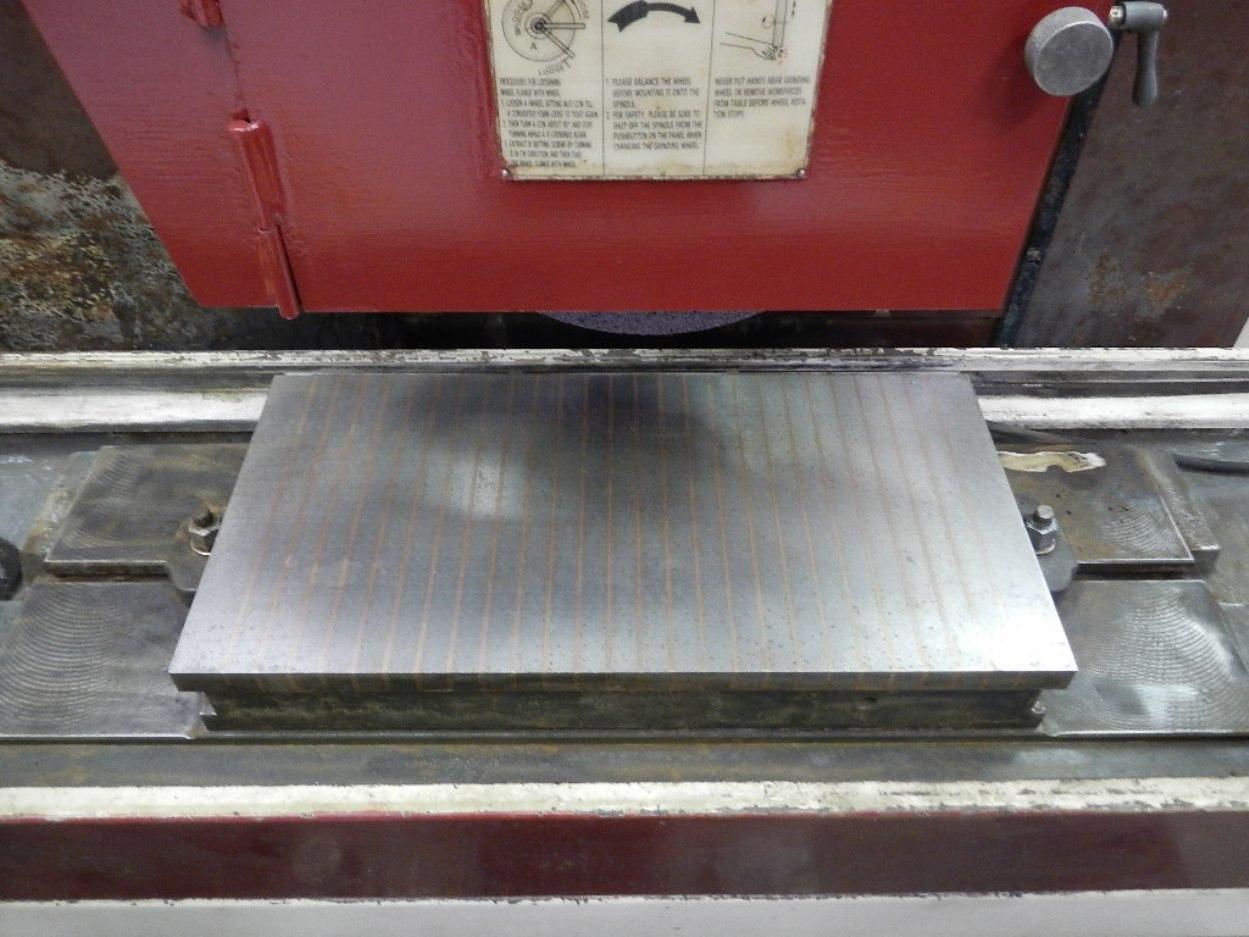

MACHINE IS EQUIPPED WITH AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE& SURFACE), 10" x 20" Electromagnetic Chuck with Variable Control, Microfeed on vertical & Cross Travel, SPARKOUT CYCLE, POWER RAPID WHEELHEAD POSITIONING, COOLANT SYSTEM W/FILTRATION, AUTO LUBE SYSTEM, full set of Manuals.
